M12 DC 3 Wire Strong EMI resistant inductive proximity switch E4 Return Data download

Product pictures

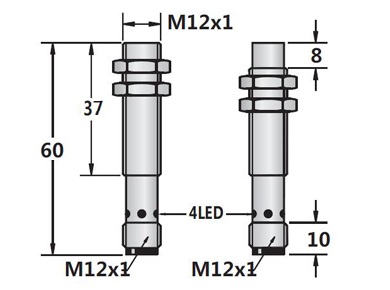

Size chart

Characteristics

Specifications

Diameter	M12*60
Mounting	Shielded
Operating distance	2.0mm
Housing material	stainless steel
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	2KHZ
Response Time	0.1ms/0.1ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	M12 Connector
Material Active Face	ETFE

DC3 Wire 10-30V NPN/N.O.	HF-C12-N01-E4
DC3 Wire 10-30V NPN/N.C.	HF-C12-N02-E4
DC3 Wire 10-30V PNP/N.O.	HF-C12-P01-E4
DC3 Wire 10-30V PNP/N.C.	HF-C12-P02-E4
