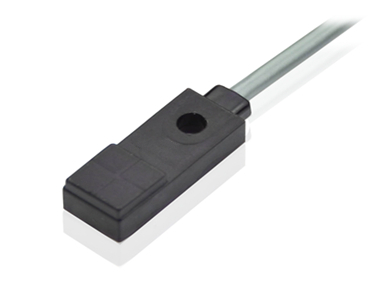

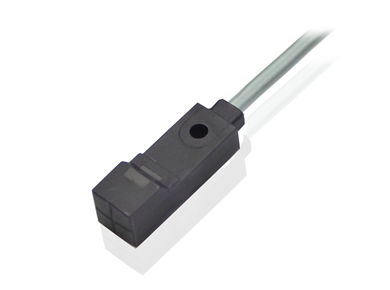

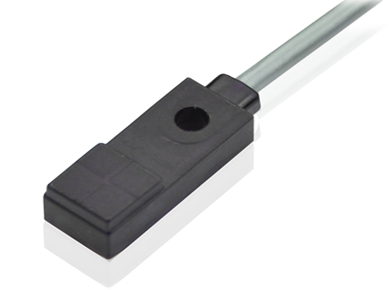

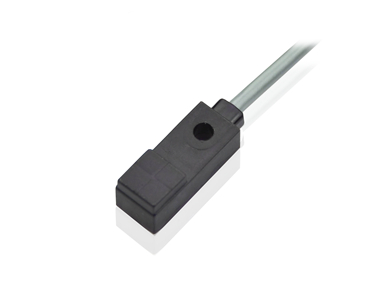

Miniature square series sensors

  • Small size, high precision, suitable for narrow space.

  • Operating voltage: 10-30VDC.

  • Output function: NPN/PNP,NO/NC can choose.

  • Protection level: IP67

  • With polarity, overload, short circuit protection.

  • Wiring method: lead wire type、connector type

  • Operating temperature: -25℃...+70℃

  • With optimized traditional technology and advanced packaging technology to ensure long-term stable work in harsh environment.

  • Data download
    Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type
    QF12*12*27 Non-Shielded​ 3.0mm PBT 10-30VDC DC 3 Wire HS-QF12 PVC, 2 m
    QF10*10*27 Non-Shielded​ 3.0mm PBT 10-30VDC DC 3 Wire HS-QF10 PVC, 2 m
    QL08*8*23 Non-Shielded​ 2.5mm PBT 10-30VDC DC 3 Wire HS-QL08 PVC, 2 m
    QF08*8*20 Non-Shielded 2.5mm PBT 10-30VDC DC 3 Wire HS-QF08 PVC, 2 m
