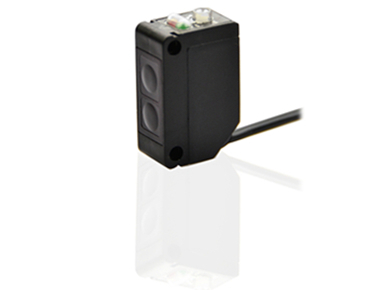

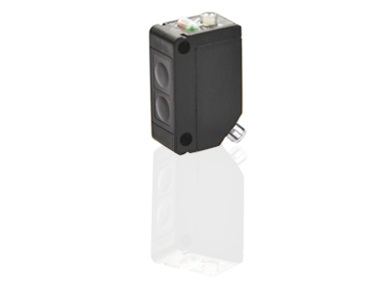

P2030 square photoelectric series

  • Infrared light source can be customized.

  • Operating voltage: 24-240VAC,12-240VDC, 10-30VDC

  • Output function: NPN/PNP,light-ON,dark-ON.

  • Protection level: IP67

  • With polarity, overload, short circuit protection.

  • Wiring method:lead wire type、connector type.

  • Operating temperature:-25℃...+55℃

  • With the advantages of small size, multi-function, long service life, high precision, fast response speed, long detection distance and strong anti-light, electric and magnetic interference ability.

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type
P20.2*31.5*12 Retro-reflective 0.1~4m ABS 10-30VDC DC 4 Wire HLR3-P2030 M8 Connector
P20.2*31.5*12 Retro-reflective 0.1~4m ABS 10-30VDC DC 4 Wire HLR3-P2030 PVC, 2 m
P20.2*31.5*12 Retro-reflective(with polarizing filter) 0.1~2m ABS 10-30VDC DC 4 Wire HLR2-P2030 M8 Connector
P20.2*31.5*12 Retro-reflective(with polarizing filter) 0.1~2m ABS 10-30VDC DC 4 Wire HLR2-P2030 PVC, 2 m
P20.2*31.5*12 Retro-reflective(For transparent) 0.1~0.7m ABS 10-30VDC DC 4 Wire HLR-P2030 M8 Connector
P20.2*31.5*12 Retro-reflective(For transparent) 0.1~0.7m ABS 10-30VDC DC 4 Wire HLR-P2030 PVC, 2 m
P20.2*31.5*12 Diffuse 800.0mm ABS 10-30VDC DC 4 Wire HLD3-P2030 M8 Connector
P20.2*31.5*12 Diffuse 800.0mm ABS 10-30VDC DC 4 Wire HLD3-P2030 PVC, 2 m
P20.2*31.5*12 Diffuse 350.0mm ABS 10-30VDC DC 4 Wire HLD2-P2030 M8 Connector
P20.2*31.5*12 Diffuse 350.0mm ABS 10-30VDC DC 4 Wire HLD2-P2030 PVC, 2 m
P20.2*31.5*12 Diffuse 110.0mm ABS 10-30VDC DC 4 Wire HLD-P2030 M8 Connector
P20.2*31.5*12 Diffuse 110.0mm ABS 10-30VDC DC 4 Wire HLD-P2030 PVC, 2 m
P20.2*31.5*12 Through beam 10m ABS 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 4 Wire HLT2-P2030 M8 Connector
P20.2*31.5*12 Through beam 10m ABS 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 4 Wire HLT2-P2030 PVC, 2 m
P20.2*31.5*12 Through beam 5m ABS 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 4 Wire HLT-P2030 M8 Connector
P20.2*31.5*12 Through beam 5m ABS 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 4 Wire HLT-P2030 PVC, 2 m
