U (groove) photoelectric series

Control output: Built-in miniature amplifier NPN/PNP, NO/NC output

Various external dimensions meet different installation requirements

High speed response frequency:2kHz,U type:1kHz

Wide voltage:5-24VDC

Operating temperature:-25℃...+70℃

With polarity, overload, short circuit protection.

Work status can be confirmed by red indicator light.

Wiring method:2 meters of PUR wire or 0.3 meters +M8 connector.

With the advantages of Long detection distance, fast response speed, less restriction of the detected object, small objects can be detected, small and portable.

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type

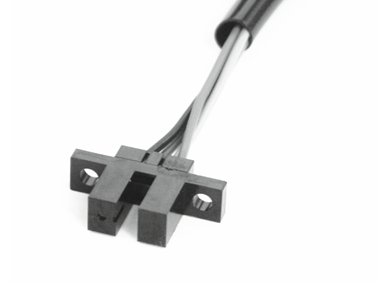

15*25.5*6.5 Through beam 3.5mm PBT 30VDC DC 4 Wire HLU-P2 22 UAS/UL Wire

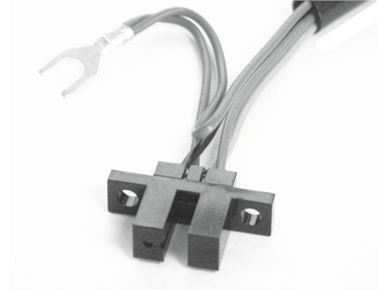

15*25.5*6.5 Through beam 3.5mm PBT 30VDC DC 4 Wire HLU-P1 22 UAS/UL Wire

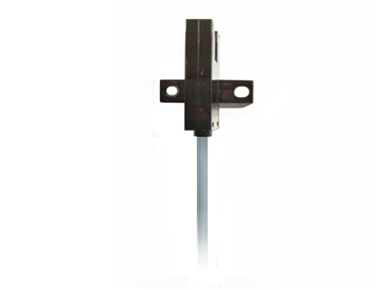

15*25.5*6.5 Through beam 3.5mm PBT 5-24VDC DC 4 Wire HLT-PU PUR, 2 m
15*25.5*6.5 Through beam 3.5mm PBT 5-24VDC DC 4 Wire HLT-PU PUR, 2 m

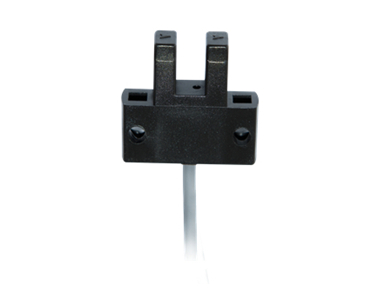

13.3*25.5*6 Through beam 5.0mm PA-6 5-24VDC DC 4 Wire HLT-PUL PUR, 2 m

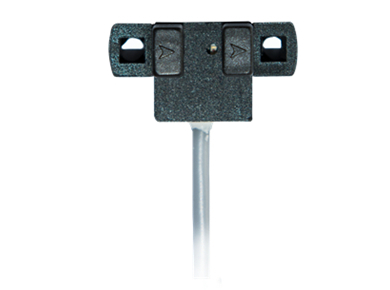

22*25*13.7 Through beam 5.0mm PA-6 5-24VDC DC 4 Wire HLT-PUT PUR, 2 m

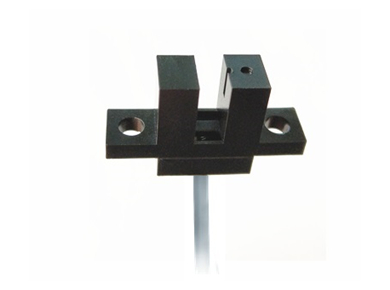

22*25*6 Through beam 5.0mm PA-6 5-24VDC DC 4 Wire HLT-PUK PUR, 2 m
