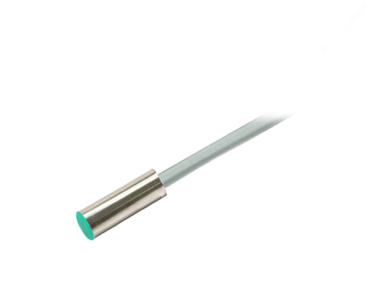

Current position：Home - Products - Ordinary inductive sensors - DC three-wire ultra-short inductive proximity switch

Small size, high precision, suitable for narrow space;
Working voltage: 10- 30 VDC;
Output function: NPN/PNP, NO/NC optional
With polarity, overload, short-circuit protection class:
IP67 Straight Out, Plug-In
Operating temperature-25 ℃-+70℃
Optimized traditional processes and advanced packaging technology ensure long-term stable operation in harsh environments

Data download

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	Model	Connection type

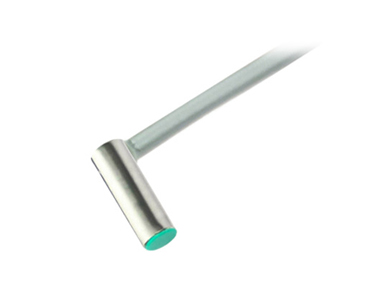

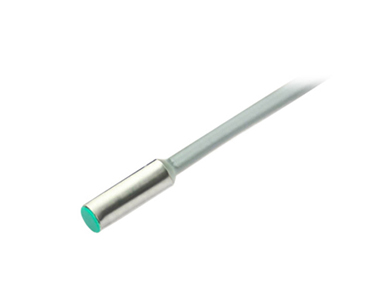

φ6.5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	φ6.5×18	axial cable exit

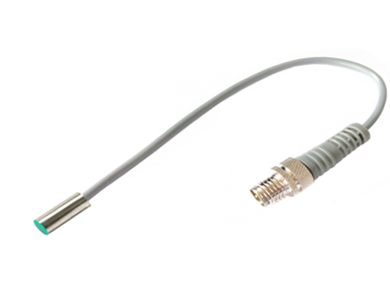

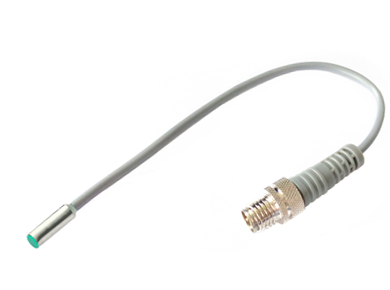

φ6.5	flush	1.5mm	stainless steel	10-30VDC	DC3 wire	φ6.5x18	prewired M8 connector
φ6.5Y	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	φ6.5×18	axial cable exit

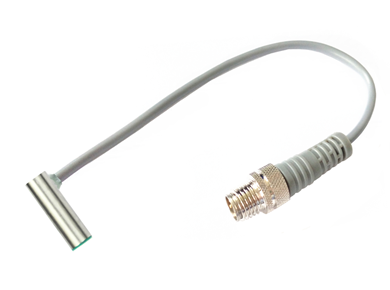

φ6.5Y	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x18	prewired M8 connector

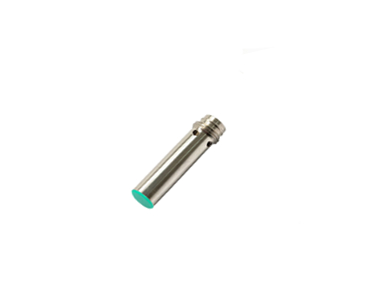

φ6.5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x32	M8 connector
φ6.5	flush	2mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x18	axial cable exit
φ6.5	flush	2mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x18	prewired M8 connector
φ6.5Y	flush	2mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x18	axial cable exit
φ6.5Y	flush	2mm	stainless steel	10-30VDC	DC 3 wire	φ6.5x18	prewired M8 connector
φ6.5	flush	2mm	stainless steel	10-30VDC	D C3 wire	φ6.5x32	M8 connector

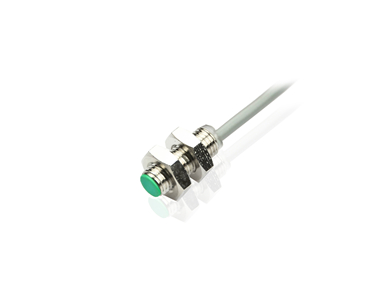

M8	flush	1.5mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x18	axial cable exit

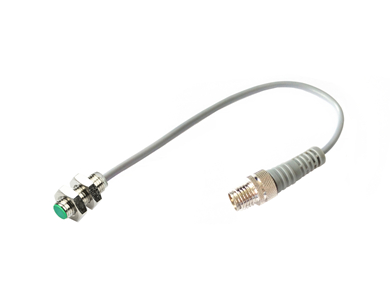

M8	flush	1.5mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x18	prewired M8 connector

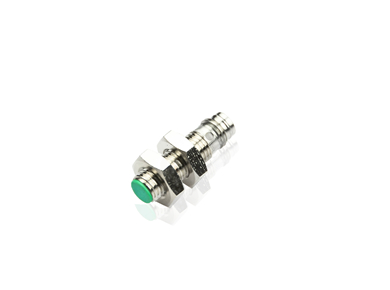

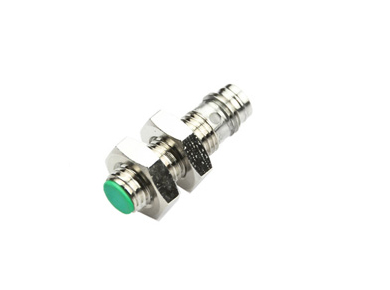

M8	flush	1.5mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x32	M8 connector
M8	flush	2mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x18	axial cable exit
M8	flush	2mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x18	prewired M8 connector
M8	flush	2mm	stainless steel/nickle plated brass	10-30VDC	DC 3 wire	M8x32	M8 connector
φ8	flush	1.5mm	stainless steel	10-30VDC	DC 3 Wire	φ8x18	axial cable exit
φ8	flush	1.5mm	stainless steel	10-30VDC	DC 3 Wire	φ8x18	prewired M8 connector

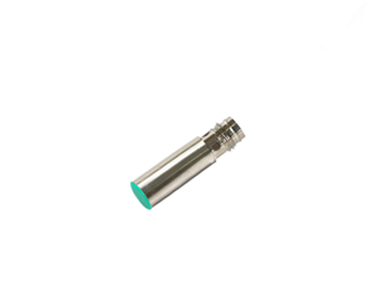

φ8	flush	1.5mm	stainless steel	10-30VDC	DC 3 Wire	φ8x32	M8 connector
φ8	flush	2mm	stainless steel	10-30VDC	DC 3 Wire	φ8x18	axial cable exit
φ8	flush	2mm	stainless steel	10-30VDC	DC 3 Wire	φ8x18	prewired M8 connector
φ8	flush	2mm	stainless steel	10-30VDC	DC 3 Wire	φ8x32	M8 connector

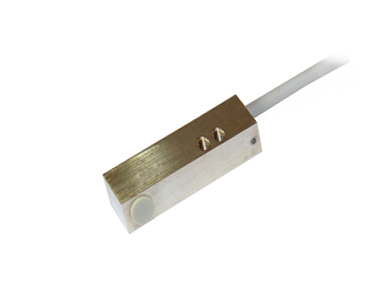

Q8	flush	1.5mm	nickle plated brass	10-30VDC	DC 3 Wire	Q8x8x16	axial cable exit

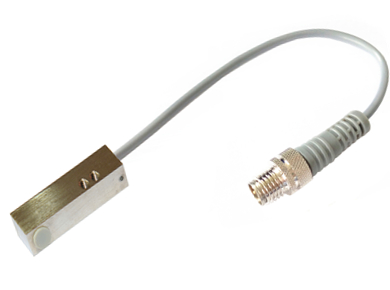

Q8	flush	1.5mm	nickel plated brass	10-30VDC	DC 3 Wire	φ8x8x16	prewired M8 connector

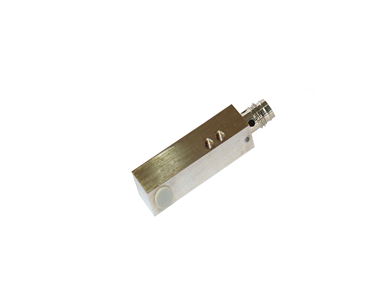

Q8	flush	1.5mm	nickel plated brass	10-30VDC	DC 3 Wire	φ8x8x28	M8 connector
Q8	flush	2mm	nickel plated brass	10-30VDC	DC 3 Wire	Q8x8x16	axial cable exit
Q8	flush	2mm	nickel plated brass	10-30VDC	DC 3 Wire	Q8x8x16	prewired M8 connector
Q8	flush	2mm	nickle plated brass	10-30VDC	DC 3 Wire	Q88x28	M8 connector

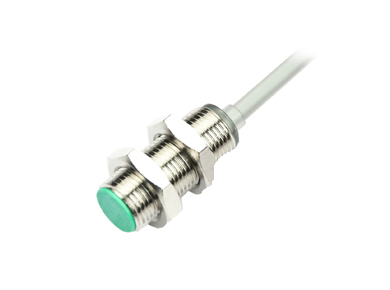

M12	flush	2mm	nickle plated brass	10-30VDC	DC 3 wire	M12x22	axial cable exit with tang

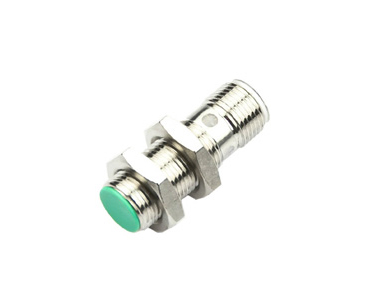

M12	flush	2mm	nickle plated brass	10-30VDC	DC 3 Wire	M12x45	M12 connector
M12	flush	4mm	nickel plated brass	10-30VDC	DC 3 Wire	M12x22	axial cable exit with tang
M12	flush	4mm	nickel plated brass	10-30VDC	DC 3 Wire	M12x45	M12 connector
