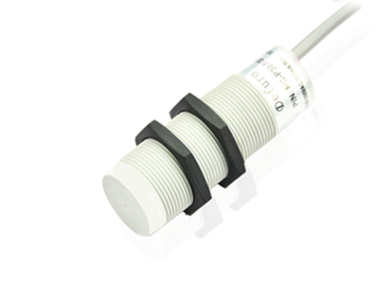

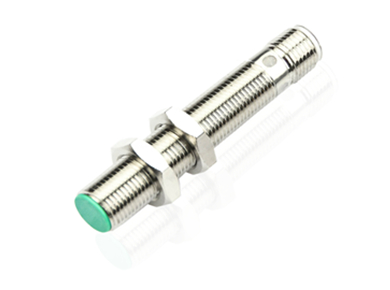

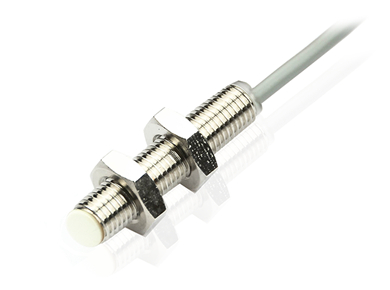

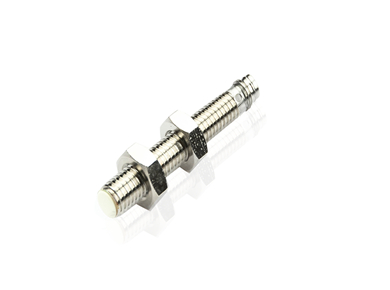

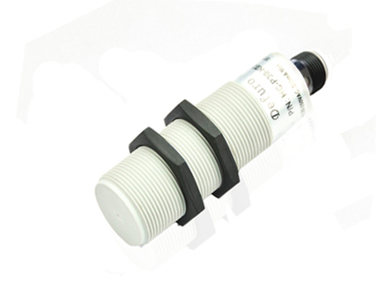

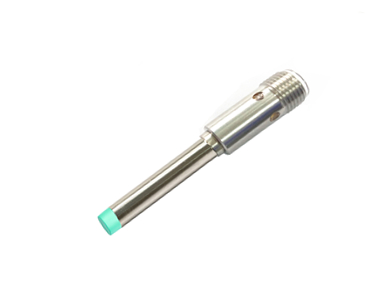

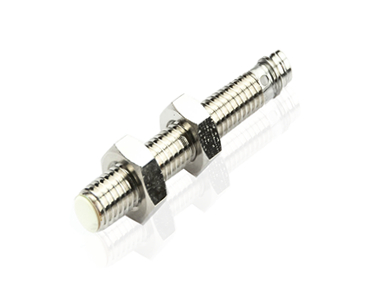

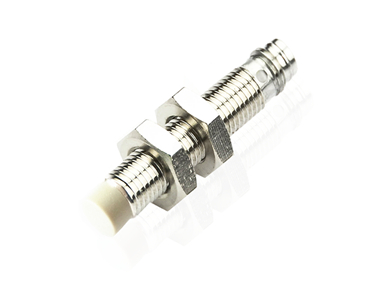

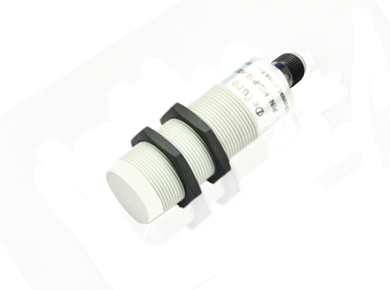

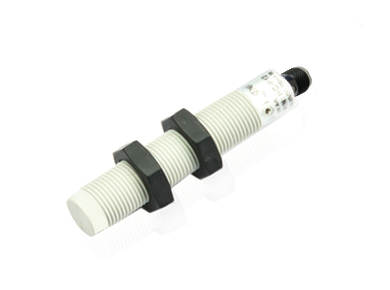

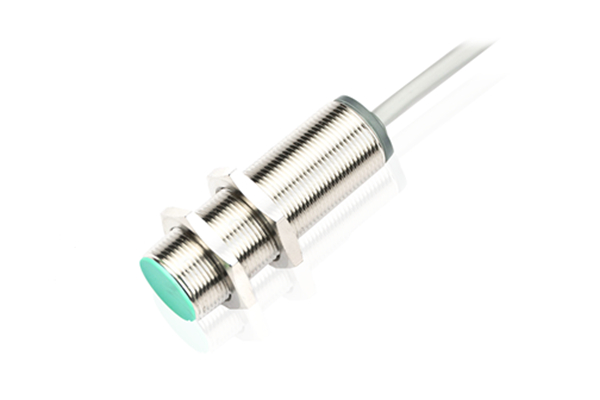

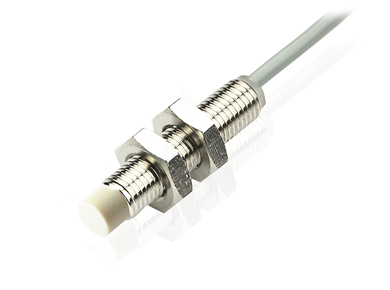

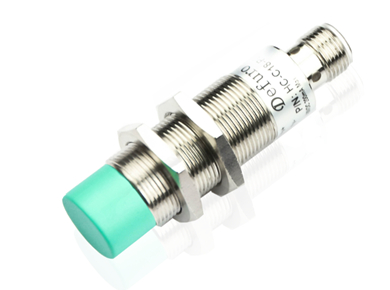

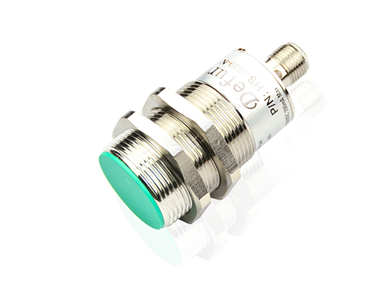

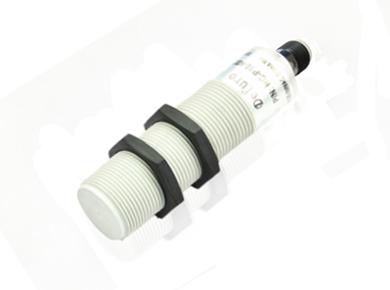

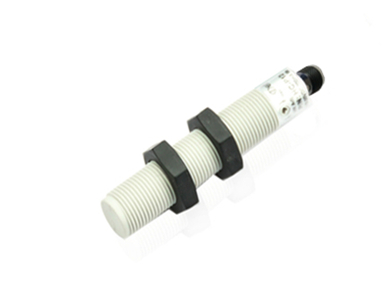

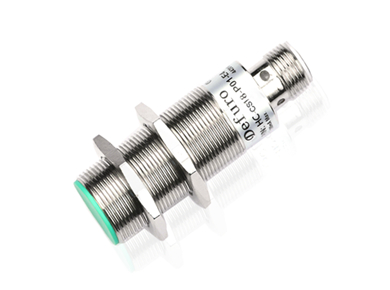

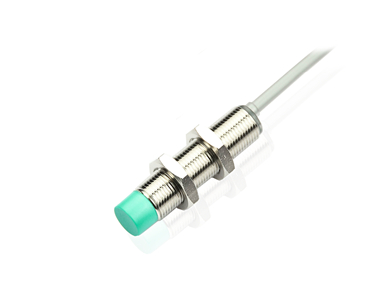

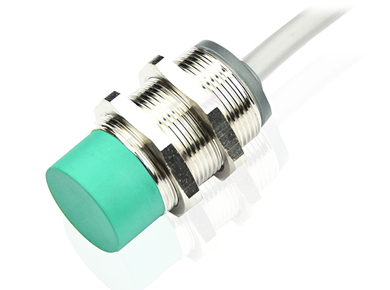

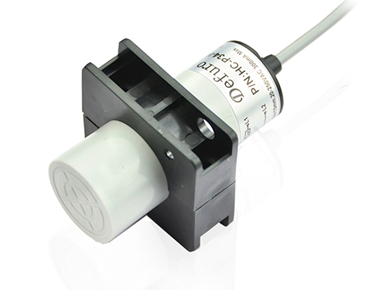

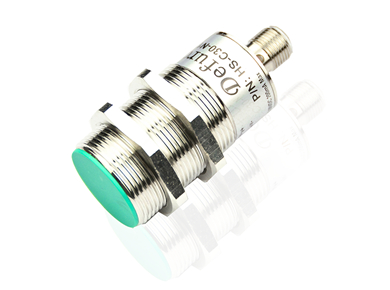

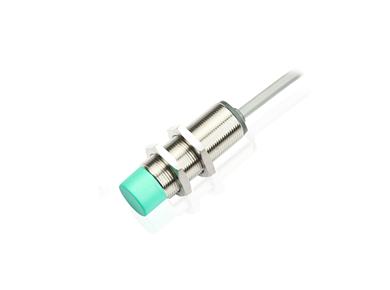

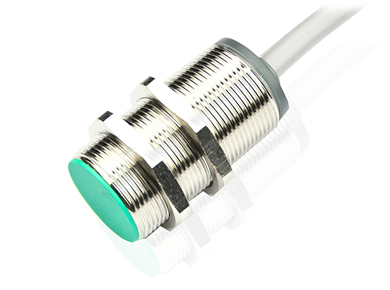

Universal capacitive sensors

  • Operating voltage: 20-250VAC,20-250VDC, 10-30VDC

  • Output function: NPN/PNP,NO/NC.

  • Protection level: IP67

  • With polarity, overload, short circuit protection.

  • Wiring method:lead wire type、connector type.

  • Operating temperature:-25℃...+70℃

  • It can induction all objects of metal and nonmetal,the temperature andvoltage range is wide and can be applied to different high and low temperature andvoltage occasions.

  • With simple structure, high temperature resistance, radiation resistance, high resolution and good dynamic response,material level induction function.

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type

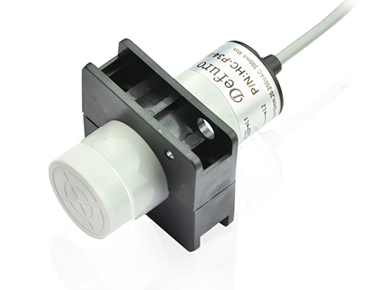

φ34*90 Non-Shielded 2~35.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P34 M12 Connector
φ34*90 Shielded 2~25.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P34 M12 Connector
φ34*80 Non-Shielded​ 2~35.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P34 PVC, 2 m
φ34*80 Shielded 2~25.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P34 PVC, 2 m
φ34*90 Non-Shielded 2~35.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P34 M12 Connector
φ34*90 Shielded 2~25.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P34 M12 Connector
φ34*80 Non-Shielded 2~35.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P34 PVC, 2 m
φ34*80 Shielded 2~25.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P34 PVC, 2 m
M30*78 Non-Shielded​ 2~30.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS30 M12 Connector
M30*78 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS30 M12 Connector
M30*55 Non-Shielded 2~30.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS30 PVC, 2 m
M30*55 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS30 PVC, 2 m
M30*90 Non-Shielded 2~30.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P30 M12 Connector
M30*90 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P30 M12 Connector
M30*80 Non-Shielded 2~30.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P30 PVC, 2 m
M30*80 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P30 PVC, 2 m
M30*78 Non-Shielded 2~30.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS30 M12 Connector
M30*78 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS30 M12 Connector
M30*55 Non-Shielded​ 2~30.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS30 PVC, 2 m
M30*55 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS30 PVC, 2 m
M30*90 Non-Shielded​ 2~30.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P30 M12 Connector
M30*90 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P30 M12 Connector
M30*80 Non-Shielded 2~30.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P30 PVC, 2 m
M18*80 Shielded 2~20.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P30 PVC, 2 m
M30*78 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS30 M12 Connector
M30*78 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS30 M12 Connector
M30*55 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS30 PVC, 2 m
M30*55 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS30 PVC, 2 m
M30*90 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C30 M12 Connector
M30*90 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C30 M12 Connector
M30*80 Non-Shielded​ 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C30 PVC, 2 m
M30*80 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C30 PVC, 2 m
M30*78 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS30 M12 Connector
M30*78 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS30 M12 Connector
M30*55 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS30 PVC, 2 m
M30*55 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS30 PVC, 2 m
M30*90 Non-Shielded​ 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C30 M12 Connector
M30*90 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C30 M12 Connector
M30*80 Non-Shielded 2~30.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C30 PVC, 2 m
M30*80 Shielded 2~20.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C30 PVC, 2 m
M18*79 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS18 M12 Connector
M18*79 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS18 M12 Connector
M18*55 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS18 PVC, 2 m
M18*55 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 4 Wire HC-PS18 PVC, 2 m
M18*93 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P18 M12 Connector
M18*93 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P18 M12 Connector
M18*80 Non-Shielded​ 2~15.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P18 PVC, 2 m
M18*80 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 4 Wire HC-P18 PVC, 2 m
M18*79 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS18 M12 Connector
M18*79 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS18 M12 Connector
M18*55 Non-Shielded​ 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS18 PVC, 2 m
M18*55 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS18 PVC, 2 m
M18*93 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 M12 Connector
M18*93 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 M12 Connector
M18*93 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 M12 Connector
M18*93 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 M12 Connector
M18*80 Non-Shielded 2~15.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 PVC, 2 m
M18*80 Shielded 2~8.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P18 PVC, 2 m
M18*79 Non-Shielded​ 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS18 M12 Connector
M18*79 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS18 M12 Connector
M18*55 Non-Shielded 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS18 PVC, 2 m
M18*55 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-CS18 PVC, 2 m
M18*93 Non-Shielded 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C18 M12 Connector
M18*93 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C18 M12 Connector
M18*80 Non-Shielded 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C18 PVC, 2 m
M18*80 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 4 Wire HC-C18 PVC, 2 m
M18*79 Non-Shielded 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS18 M12 Connector
M18*79 Shielded​ 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS18 M12 Connector
M18*55 Non-Shielded 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS18 PVC, 2 m
M18*55 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS18 PVC, 2 m
M18*93 Non-Shielded​ 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C18 M12 Connector
M18*93 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C18 M12 Connector
M18*80 Non-Shielded​ 2~15.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C18 PVC, 2 m
M18*80 Shielded 2~8.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C18 PVC, 2 m
M12*50 Non-Shielded​ 1~6.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS12 M12 Connector
M12*50 Shielded 1~3.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS12 M12 Connector
M12*42 Non-Shielded 1~6.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS12 PVC, 2 m
M12*42 Shielded 1~3.0mm adjustable PBT 10-30VDC DC 3 Wire HC-PS12 PVC, 2 m
M12*68 Non-Shielded 1~6.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P12 M12 Connector
M12*68 Shielded 1~3.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P12 M12 Connector
M12*59 Non-Shielded​ 1~6.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P12 PVC, 2 m
M12*59 Shielded 1~3.0mm adjustable PBT 10-30VDC DC 3 Wire HC-P12 PVC, 2 m
M12*50 Non-Shielded​ 1~6.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS12 M12 Connector
M12*50 Shielded 1~3.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS12 M12 Connector
M12*42 Non-Shielded 1~6.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS12 PVC, 2 m
M12*42 Shielded 1~3.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-CS12 PVC, 2 m
M12*68 Non-Shielded​ 1~6.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C12 M12 Connector
M12*68 Shielded 1~3.0mm adjustable Shielded 10-30VDC DC 3 Wire HC-C12 M12 Connector
M12*59 Non-Shielded​ 1~6.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C12 PVC, 2 m
M12*59 Shielded 1~3.0mm adjustable Nickel plated brass 10-30VDC DC 3 Wire HC-C12 PVC, 2 m
M8*53 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 M12 Connector
M8*53 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 M12 Connector
M8*45 Non-Shielded​ 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 M8 Connector
M8*45 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 M8 Connector
M8*30 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 PVC, 2 m
M8*30 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-CS08 PVC, 2 m
M8*70 Non-Shielded​ 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 M12 Connector
M8*70 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 M12 Connector
M8*60 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 M8 Connector
M8*60 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 M8 Connector
M8*45 Non-Shielded​ 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 PVC, 2 m
M8*45 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-C08 PVC, 2 m
φ6.5*69 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 M12 Connector
φ6.5*69 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 M12 Connector
φ6.5*60 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 M8 Connector
φ6.5*60 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 M8 Connector
φ6.5*40 Non-Shielded​ 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 PVC, 2 m
φ6.5*40 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-S06 PVC, 2 m
φ6.5*53 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 M12 Connector
φ6.5*53 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 M12 Connector
φ6.5*45 Non-Shielded​ 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 M8 Connector
φ6.5*45 Shielded​ 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 M8 Connector
φ6.5*30 Non-Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 PVC, 2 m
φ6.5*30 Shielded 1.0mm Nickel plated brass 10-30VDC DC 3 Wire HC-SS06 PVC, 2 m
