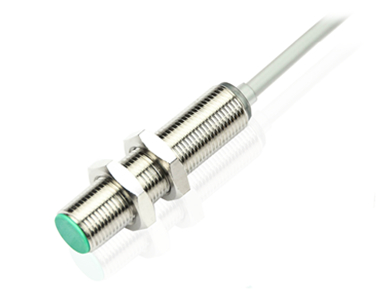

Analog output sensors

  • The output signal is linear function relation with the measured distance.

  • With extremely high accuracy, it can accurately locate the detected object.

  • Operating voltage: 18-30VDC.

  • Output function: voltage signal, current signal can choose.

  • Protection level: IP67

  • With reverse polarity protection.

  • Wiring method: lead wire type、connector type

  • Operating temperature: -25℃...+70℃



Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type
R40*40*118 Non-Shielded 7~20.0mm PBT 18-30VDC Analog current+voltage output PNP HS-R40 M12 Connector
R40*40*118 Non-Shielded 7~20.0mm PBT 18-30VDC Analog current+voltage output PNP HS-Q40 -
R40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog current+voltage output PNP HS-Q40 M12 Connector
R40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog current+voltage output PNP HS-R40 -

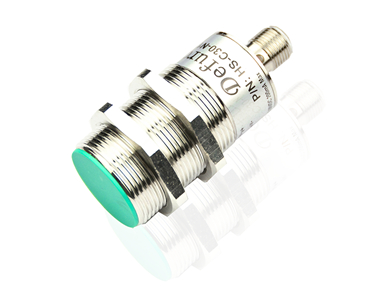

M30*91 Non-Shielded 7~14.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C30 M12 Connector

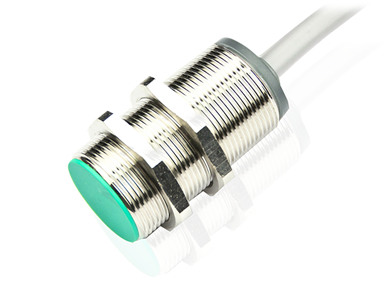

M30*80 Non-Shielded​ 7~14.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C30 PVC, 2 m
M30*91 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C30 M12 Connector
M30*80 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C30 PVC, 2 m
M18*91 Non-Shielded​ 1~7.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C18 M12 Connector

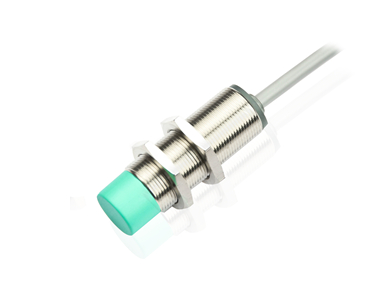

M18*80 Non-Shielded​ 1~7.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C18 PVC, 2 m
M18*91 Shielded 1~4.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C18 M12 Connector

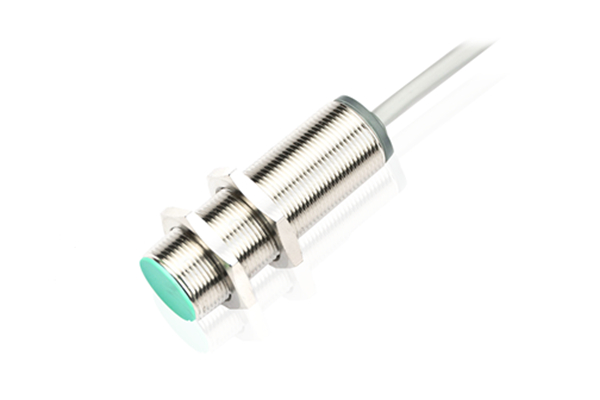

M18*80 Shielded​ 1~4.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C18 PVC, 2 m

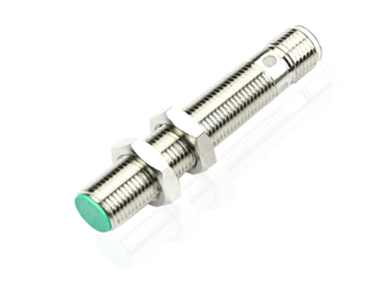

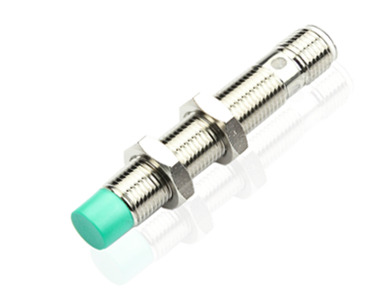

M12*68 Non-Shielded 0.1~4.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C12 M12 Connector
M12*50 Non-Shielded​ 0.1~4.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C12 PVC, 2 m
M12*68 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C12 M12 Connector
M12*50 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C12 PVC, 2 m
M8*60 Non-Shielded​ 0.1~2.5mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C08 M8 Connector

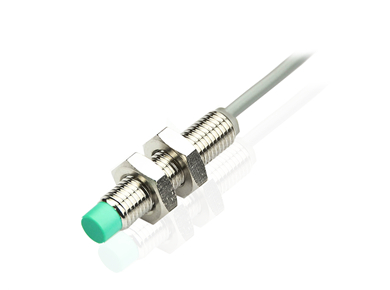

M8*45 Non-Shielded​ 0.1~2.5mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C08 PVC, 2 m
M8*60 Shielded​ 0.1~1.5mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C08 M8 Connector

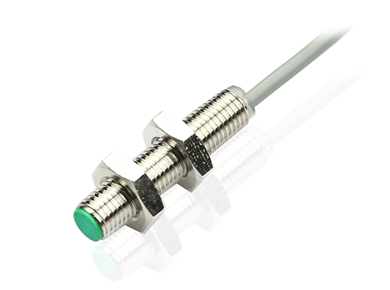

M8*45 Shielded 0.1~1.5mm Nickel plated brass 18-30VDC Analog current+voltage output PNP HS-C08 PVC, 2 m
R40*40*118 Non-Shielded 7~20.0mm PBT 18-30VDC Analog voltage output PNP HS-R40 M12 Connector
R40*40*118 Non-Shielded 7~20.0mm PBT 18-30VDC Analog voltage output PNP HS-R40 -
R40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog voltage output PNP HS-R40 M12 Connector
R40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog voltage output PNP HS-R40 -
M30*91 Non-Shielded​ 7~14.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C30 M12 Connector
M30*80 Non-Shielded​ 7~14.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C30 PVC, 2 m
M30*91 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C30 M12 Connector
M30*80 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C30 PVC, 2 m
M18*91 Non-Shielded 1~7.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C18 M12 Connector
M18*80 Non-Shielded 1~7.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C18 PVC, 2 m
M18*91 Shielded 1~4.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C18 M12 Connector
M18*80 Shielded 1~4.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C18 PVC, 2 m
M12*68 Non-Shielded​ 0.1~4.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C12 M12 Connector
M12*50 Non-Shielded 0.1~4.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C12 PVC, 2 m
M12*68 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C12 M12 Connector
M12*50 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C12 PVC, 2 m
M8*60 Non-Shielded 0.1~2.5mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C08 M8 Connector
M8*45 Non-Shielded 0.1~2.5mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C08 PVC, 2 m
M8*60 Shielded 0.1~1.5mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C08 M8 Connector
M8*45 Shielded 0.1~1.5mm Nickel plated brass 18-30VDC Analog voltage output PNP HS-C08 PVC, 2 m
Q40*40*118 Non-Shielded 7~20.0mm PBT 18-30VDC Analog current output PNP HS-Q40 M12 Connector
Q40*40*118 Non-Shielded​ 7~20.0mm PBT 18-30VDC Analog current output PNP HS-Q40 -
QS40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog current output PNP HS-Q40 M12 Connector
Q40*40*118 Shielded 6~15.0mm PBT 18-30VDC Analog current output PNP HS-Q40 -
M30*91 Non-Shielded 7~14.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C30 M12 Connector
M30*80 Non-Shielded​ 7~14.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C30 PVC, 2 m
M30*91 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C30 M12 Connector
M30*80 Shielded 5~10.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C30 PVC, 2 m
M18*91 Non-Shielded​ 1~7.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C18 M12 Connector
M18*80 Non-Shielded 1~7.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C18 PVC, 2 m
M18*91 Shielded 1~4.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C18 M12 Connector
M18*80 Shielded 1~4.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C18 PVC, 2 m
M12*68 Non-Shielded 0.1~4.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C12 M12 Connector
M12*50 Non-Shielded 0.1~4.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C12 PVC, 2 m
M12*68 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C12 M12 Connector
M12*50 Shielded 0.1~3.0mm Nickel plated brass 18-30VDC Analog current output PNP HS-C12 PVC, 2 m
M8*60 Non-Shielded 0.1~2.5mm Nickel plated brass 18-30VDC Analog current output PNP HS-C08 M8 Connector
M8*45 Non-Shielded 0.1~2.5mm Nickel plated brass 18-30VDC Analog current output PNP HS-C08 PVC, 2 m
M8*60 Shielded 0.1~1.5mm Nickel plated brass 18-30VDC Analog current output PNP HS-C08 M8 Connector
M8*45 Shielded 0.1~1.5mm Nickel plated brass 18-30VDC Analog current output PNP HS-C08 PVC,2m
