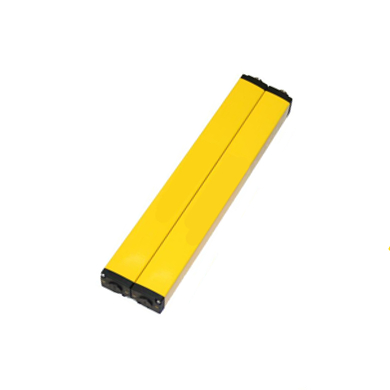

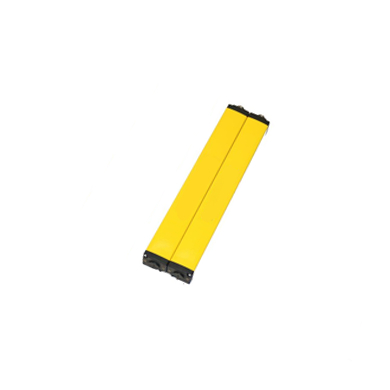

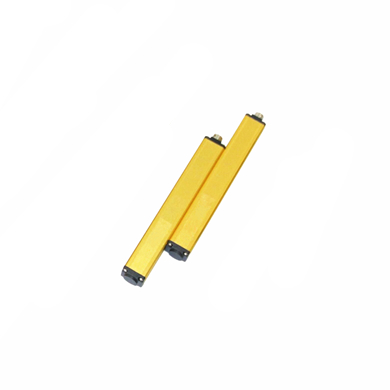

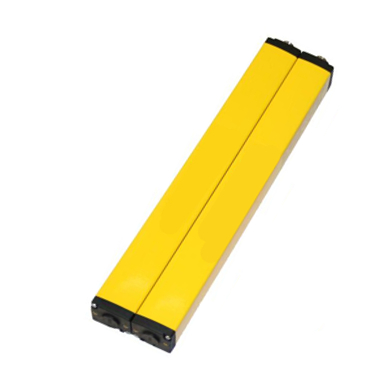

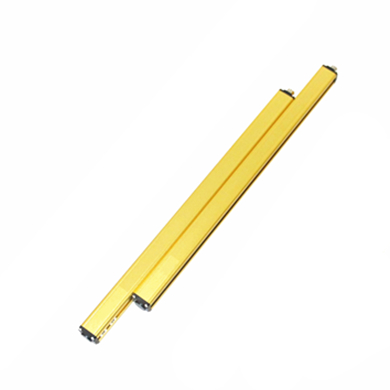

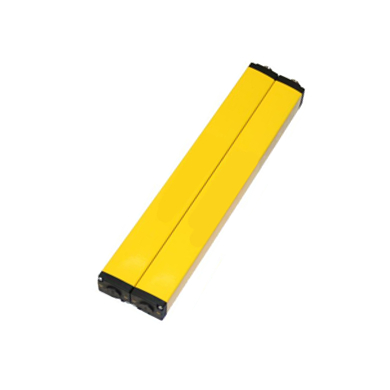

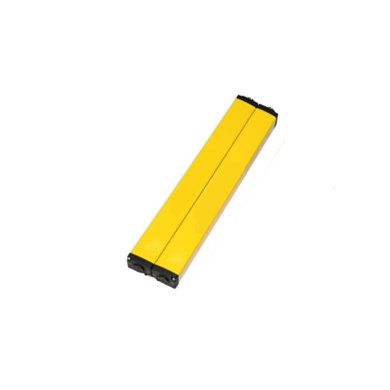

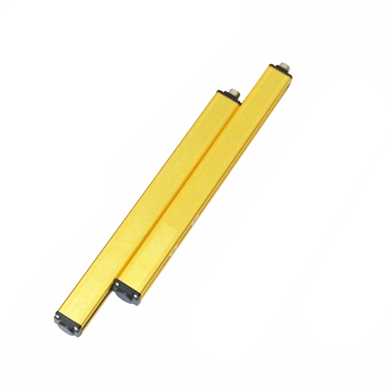

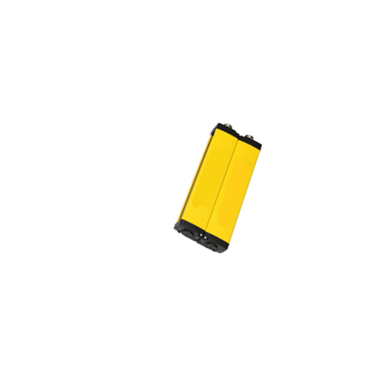

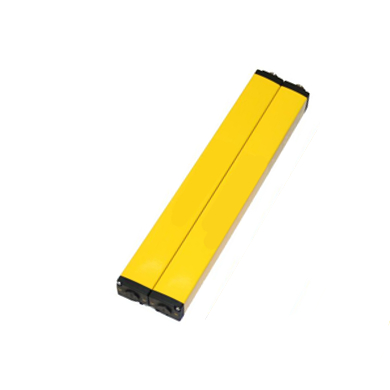

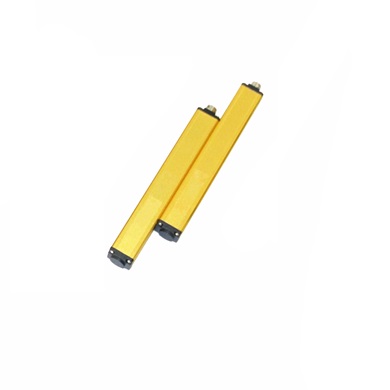

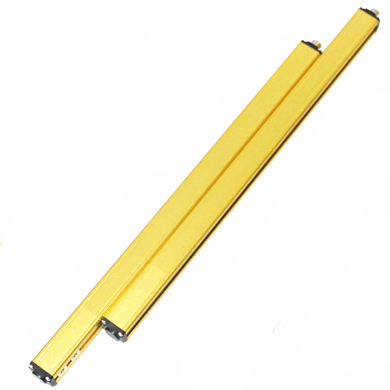

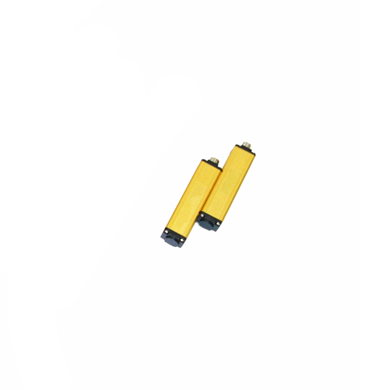

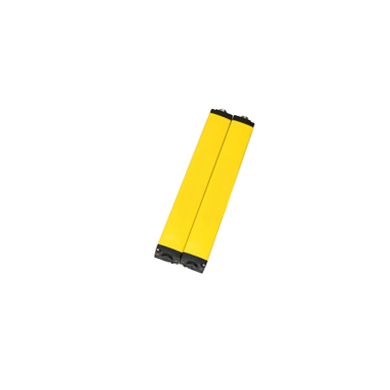

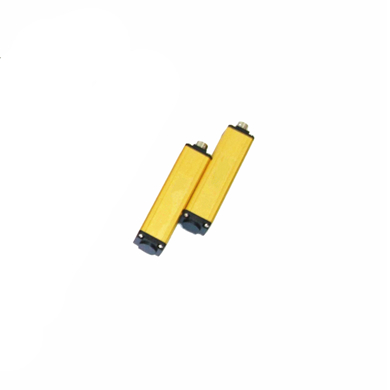

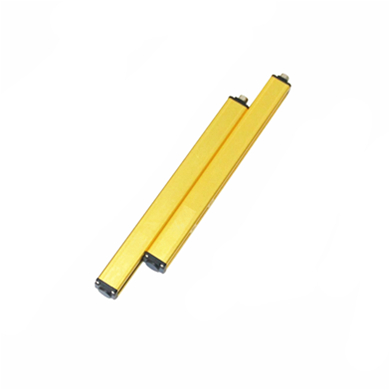

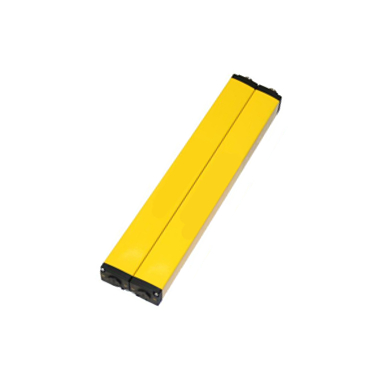

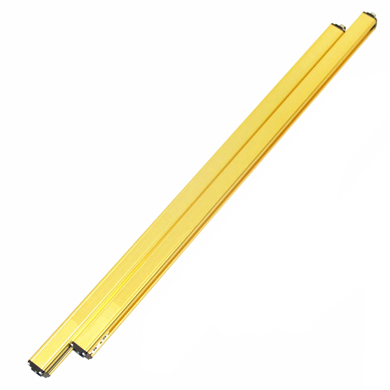

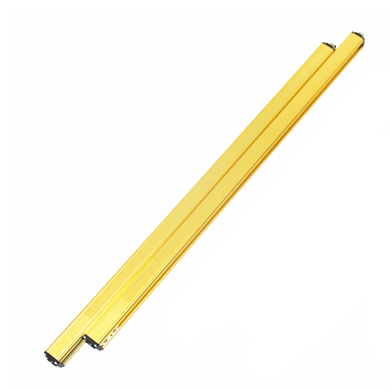

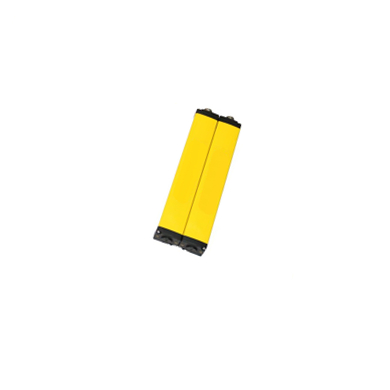

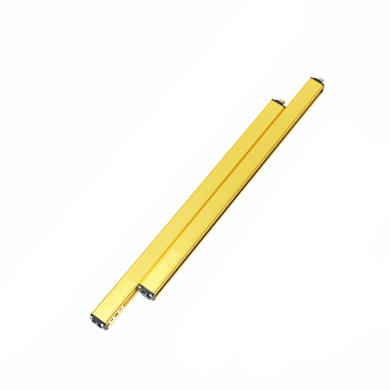

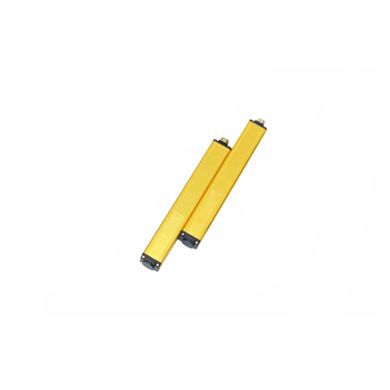

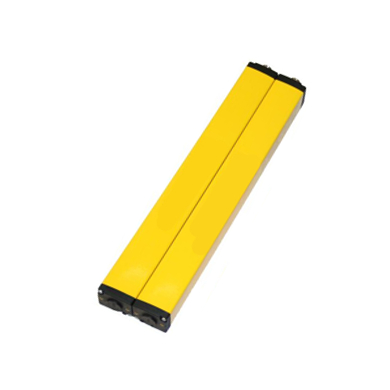

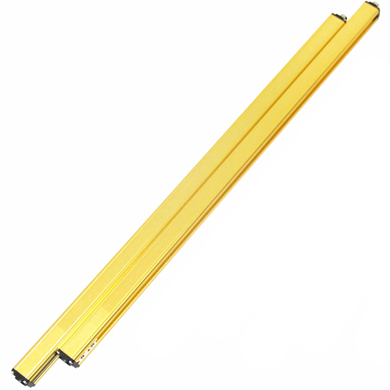

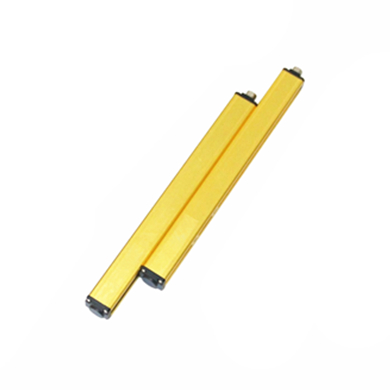

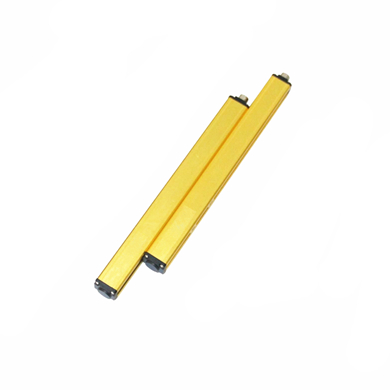

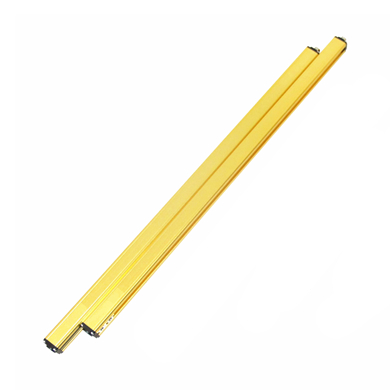

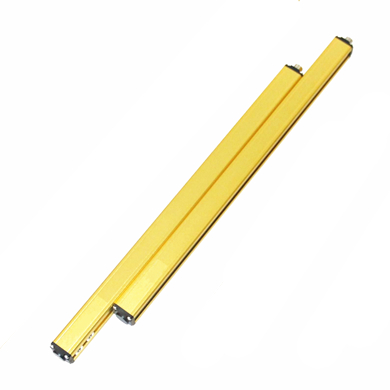

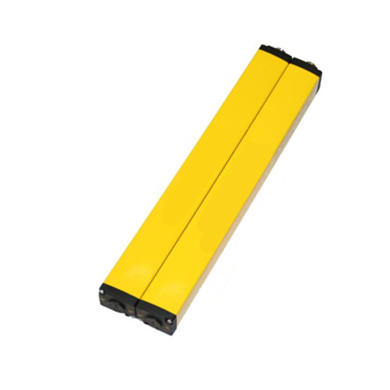

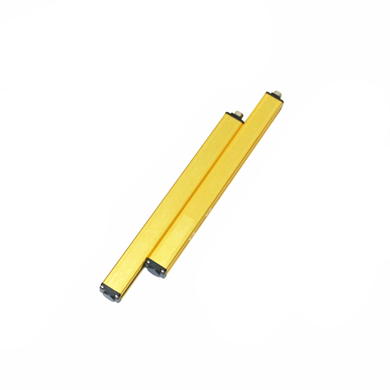

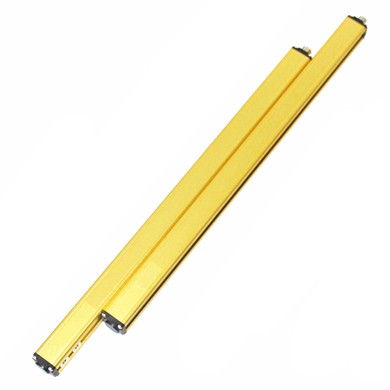

Small appearance, using aluminum alloy housing, very strong, lightweight.
Operating voltage: 10-30VDC±10%
Output function: NPN/PNP/Relay.
With20/40mm of multiple specifications resolution.
With short circuit protection.
Operating temperature:-10℃...+55℃,deposit:-10℃...+60℃

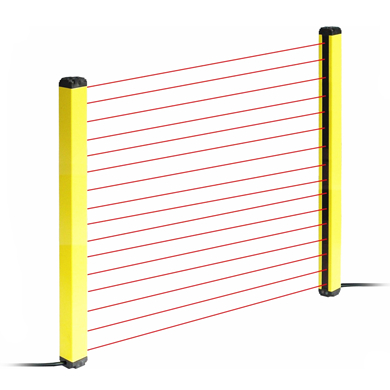

Withthe mature technology of synchronous infrared scanning, excellent optical performance and 2.5 ° divergence Angle, easy alignment and maintenance.Customizable resolution and protection width, as well as various interfaces and extension functions
| Diameter | Mounting | Operating distance/Sn | Housing material | Operating voltage | Output | model | Connection type | |
|---|---|---|---|---|---|---|---|---|
 |
290*32*32 | Through beam | 7m*H200mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P20 | M12 Connector |
 |
290*32*32 | Through beam | 7m*H200mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P20 | PVC, 2 m |
 |
210*32*32 | Through beam | 7m*H120mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P12 | M12 Connector |
|
210*32*32 | Through beam | 7m*H120mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P12 | PVC, 2 m |
 |
1490**32*32 | Through beam | 7m*H1400mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P140 | M12 Connector |
|
1490**32*32 | Through beam | 7m*H1400mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P140 | PVC, 2 m |
 |
1410**32*32 | Through beam | 7m*H1320mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P132 | M12 Connector |
|
1410**32*32 | Through beam | 7m*H1320mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P132 | PVC, 2 m |
 |
1330**32*32 | Through beam | 7m*H1240mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P124 | M12 Connector |
|
1330**32*32 | Through beam | 7m*H1240mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P124 | PVC, 2 m |
 |
1250**32*32 | Through beam | 7m*H1160mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P116 | M12 Connector |
|
1250**32*32 | Through beam | 7m*H1160mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P116 | PVC, 2 m |
|
1170**32*32 | Through beam | 7m*H1080mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P108 | M12 Connector |
|
1170**32*32 | Through beam | 7m*H1080mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P108 | PVC, 2 m |
 |
1090**32*32 | Through beam | 7m*H1000mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P100 | M12 Connector |
|
1090**32*32 | Through beam | 7m*H1000mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P100 | PVC, 2 m |
|
1010**32*32 | Through beam | 7m*H920mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P92 | M12 Connector |
|
1010**32*32 | Through beam | 7m*H920mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P92 | PVC, 2 m |
 |
930**32*32 | Through beam | 7m*H840mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P84 | M12 Connector |
|
930**32*32 | Through beam | 7m*H840mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P84 | PVC, 2 m |
|
850**32*32 | Through beam | 7m*H760mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P76 | M12 Connector |
|
850**32*32 | Through beam | 7m*H760mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P76 | PVC, 2 m |
 |
770**32*32 | Through beam | 7m*H680mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P68 | |
|
770**32*32 | Through beam | 7m*H680mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P68 | PVC, 2 m |
 |
690**32*32 | Through beam | 7m*H600mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P60 | M12 Connector |
|
690**32*32 | Through beam | 7m*H600mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P60 | PVC, 2 m |
 |
610**32*32 | Through beam | 7m*H520mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P52 | M12 Connector |
|
610**32*32 | Through beam | 7m*H520mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P52 | PVC, 2 m |
 |
530**32*32 | Through beam | 7m*H440mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P44 | M12 Connector |
|
530**32*32 | Through beam | 7m*H440mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P44 | PVC, 2 m |
 |
450**32*32 | Through beam | 7m*H360mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P36 | M12 Connector |
|
450**32*32 | Through beam | 7m*H360mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P36 | PVC, 2 m |
 |
370**32*32 | Through beam | 7m*H280mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P28 | M12 Connector |
|
370**32*32 | Through beam | 7m*H280mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLB-P28 | PVC, 2 m |
 |
270*28*28 | Through beam | 7m*H200mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P20 | M12 Connector |
|
290*32*32 | Through beam | 7m*H200mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P20 | PVC, 2 m |
 |
210*32*32 | Through beam | 7m*H120mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P12 | M12 Connector |
|
210*32*32 | Through beam | 7m*H120mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P12 | PVC, 2 m |
 |
1490**32*32 | Through beam | 7m*H1420mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P142 | M12 Connector |
|
1490**32*32 | Through beam | 7m*H1420mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P142 | PVC, 2 m |
 |
1410**32*32 | Through beam | 7m*H1340mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P134 | M12 Connector |
|
1410**32*32 | Through beam | 7m*H1340mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P134 | PVC, 2 m |
 |
1330**32*32 | Through beam | 7m*H1260mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P126 | M12 Connector |
|
1330**32*32 | Through beam | 7m*H1260mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P126 | PVC, 2 m |
 |
1250**32*32 | Through beam | 7m*H1180mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P118 | M12 Connector |
|
1250**32*32 | Through beam | 7m*H1180mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P118 | PVC, 2 m |
 |
1170**32*32 | Through beam | 7m*H1100mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P110 | M12 Connector |
|
1170**32*32 | Through beam | 7m*H1100mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P110 | PVC, 2 m |
 |
1090**32*32 | Through beam | 7m*H1020mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P102 | M12 Connector |
|
1090**32*32 | Through beam | 7m*H1020mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P102 | PVC, 2 m |
 |
1010**32*32 | Through beam | 7m*H940mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P94 | M12 Connector |
|
1010**32*32 | Through beam | 7m*H940mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P94 | PVC, 2 m |
 |
930**32*32 | Through beam | 7m*H860mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P86 | M12 Connector |
|
930**32*32 | Through beam | 7m*H860mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P86 | PVC, 2 m |
 |
850**32*32 | Through beam | 7m*H780mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P78 | M12 Connector |
|
850**32*32 | Through beam | 7m*H780mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P78 | PVC, 2 m |
 |
770**32*32 | Through beam | 7m*H700mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P70 | M12 Connector |
|
770**32*32 | Through beam | 7m*H700mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P70 | PVC, 2 m |
 |
610**32*32 | Through beam | 7m*H620mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P62 | M12 Connector |
|
610**32*32 | Through beam | 7m*H620mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P62 | PVC, 2 m |
 |
610**32*32 | Through beam | 7m*H540mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P54 | M12 Connector |
|
610**32*32 | Through beam | 7m*H540mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P54 | PVC, 2 m |
 |
530*32*32 | Through beam | 7m*H460mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P46 | M12 Connector |
|
530*32*32 | Through beam | 7m*H460mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P46 | PVC, 2 m |
 |
450*32*32 | Through beam | 7m*H380mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P38 | M12 Connector |
|
450*32*32 | Through beam | 7m*H380mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P38 | PVC, 2 m |
 |
370*32*32 | Through beam | 7m*H300mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P30 | M12 Connector |
|
370*32*32 | Through beam | 7m*H300mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P30 | PVC, 2 m |
 |
290*32*32 | Through beam | 7m*H220mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P22 | M12 Connector |
|
290*32*32 | Through beam | 7m*H220mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P22 | PVC, 2 m |
 |
210*32*32 | Through beam | 7m*H140mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P14 | M12 Connector |
|
210*32*32 | Through beam | 7m*H140mm | Frame: aluminum; Lens:PET | 10-30VDC | Emitter:DC 3 Wire; Receiver:DC 4 Wire | HLA-P14 | PVC, 2 m |
