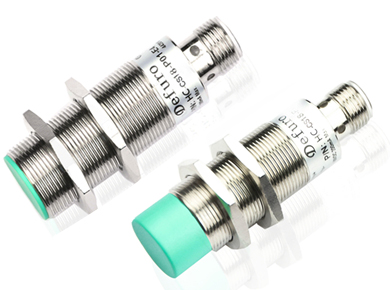

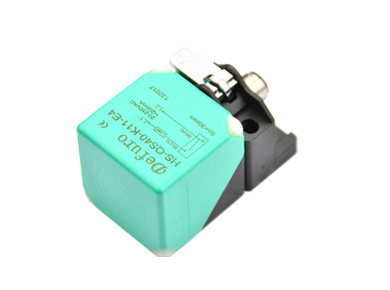

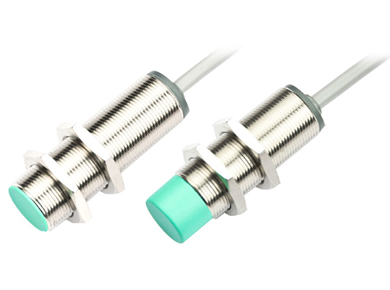

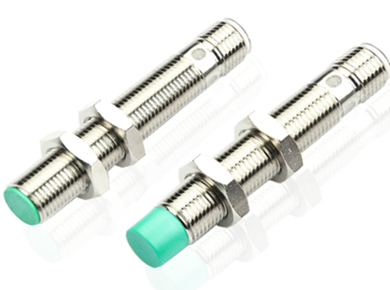

AC inductive proximity switch

 Operating voltage: 20 - 250 VAC
 Output function: NPN/PNP, NO/NC optional
 Protection class: IP67
 Direct outlet type, connector type
 Operating temperature-25 ℃-+70 ℃
 Optimized traditional process and advanced packaging technology to ensure long-term stable operation in harsh environments

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output Model Connection type
M12 flush/non-flush 2mm/4mm/6mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M12*1 straight line
M12 flush/non-flush 2mm/4mm/6mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M12*1 connector
M18 flush/non-flush 5mm/8mm/12mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M18*1 straight line
M18 flush/non-flush 5mm/8mm/12mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M18*1 straight line
M18 flush/non-flush 5mm/8mm/12mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M18*1 connector
M18 flush/non-flush 5mm/8mm/12mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M18*1 connector
M30 flush/non-flush 10mm/15mm/22mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M30*1 straight line
M30 flush/non-flush 10mm/15mm/22mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M30*1 straight line
M30 flush/non-flush 10mm/15mm/22mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M30*1 connector
M30 flush/non-flush 10mm/15mm/22mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire M30*1 connector
RS40 flush/non-flush 15mm/30mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire R40*40 connector
R40 flush/non-flush 15mm/30mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire R40*40 connector
R40 flush/non-flush 15mm/30mm Nickel plated copper/stainless steel 20-250VAC AC 2 wire R40*40 connector
