Current position：Home - Products - Special inductive sensors - Strong EMI resistant sensors

Output function: NPN/PNP, NO/NC optional
Protection class: IP67
Direct outlet type, connector type
Temperature: -40℃ to 110℃
Optimized traditional process and advanced packaging technology to ensure long-term stable operation in harsh environments
Data download

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	model	Connection type

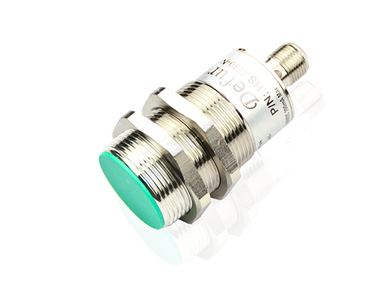

M30*53	Non-Shielded	15.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS30	M12 Connector
M30*48	Shielded	10.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS30	M12 Connector

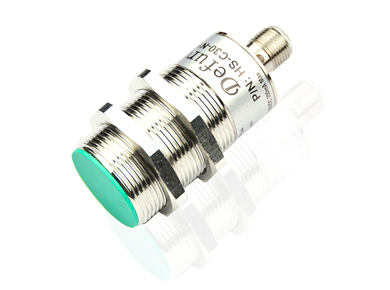

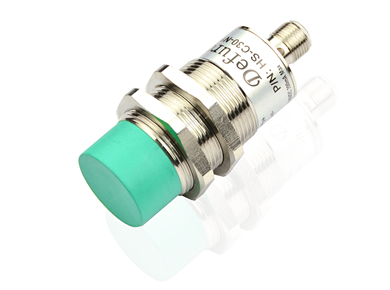

M30*75	Non-Shielded	15.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C30	M12 Connector
M30*75	Shielded	10.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C30	M12 Connector
M30*55	Non-Shielded	15.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C30	PVC,2m
M30*55	Shielded	10.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C30	M12 Connector
M18*53	Non-Shielded	8.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS18	M12 Connector
M18*48	Shielded	5.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS18	M12 Connector
M18*40	Non-Shielded	8.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS18	PVC,2m
M18*35	Shielded	5.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS18	PVC,2m

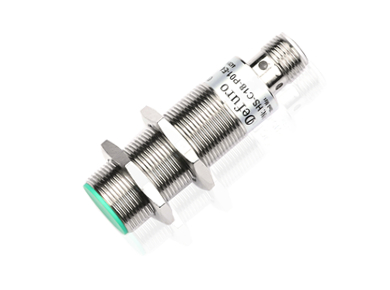

M18*65	Non-Shielded	8.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C18	M12 Connector
M18*65	Shielded	5.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C18	M12 Connector

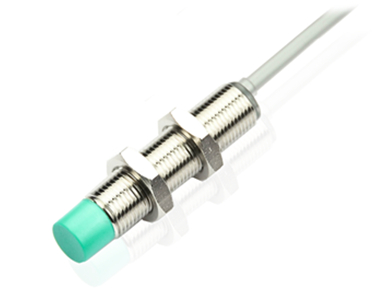

M18*55	Non-Shielded	8.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C18	PVC,2m
M18*55	Shielded	5.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-C18	PVC,2m
M12*50	Non-Shielded	4.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS12	M12 Connector
M12*50	Shielded	2.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS12	M12 Connector
M12*30	Non-Shielded	4.0mm	stainless steel	10-30VDC	DC 3 Wire	HF-CS12	PVC,2m
M12*30	Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-CS12	PVC, 2 m

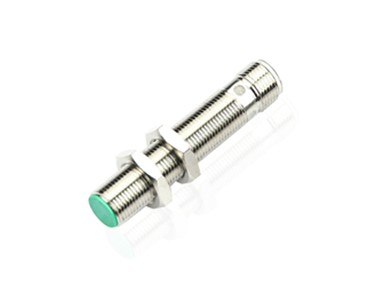

M12*60	Non-Shielded	4.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C12	M12 Connector
M12*60	Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C12	M12 Connector
M12*50	Non-Shielded	4.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C12	PVC, 2 m
M12*50	Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C12	PVC, 2 m
M8*30	Non-Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-CS08	PVC, 2 m
M18*30	Shielded	1.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-CS08	PVC, 2 m

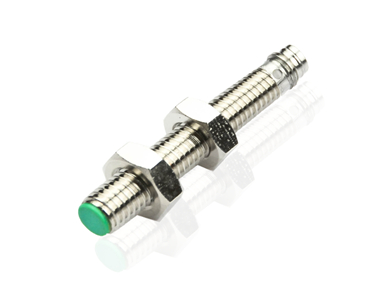

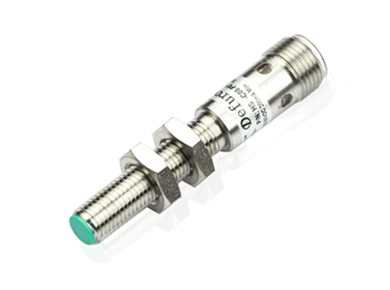

M8*70	Non-Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	M12 Connector
M8*70	Shielded	1.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	M12 Connector
M8*60	Non-Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	M8 Connector
M8*60	Shielded	1.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	M8 Connector
M8*40	Non-Shielded	2.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	PVC, 2 m
M8*40	Shielded	1.0mm	Stainless steel	10-30VDC	DC 3 Wire	HF-C08	PVC, 2 m
