Current position：Home - Products - Special inductive sensors - Extended sensing distance sensors

M30 DC 3 Wire Extended sensing distance inductive proximity switch CS-E4 Return Data download

Product pictures

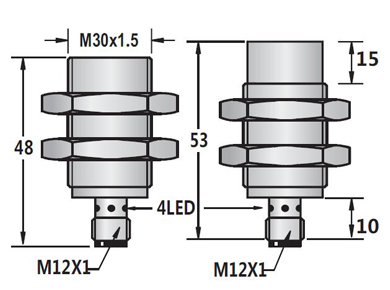

Size chart

Characteristics

Specifications

Diameter	M30*53
Mounting	Non-Shielded
Operating distance	40.0mm
Housing material	stainless steel
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<2.0V
Switching Frequency	100HZ
Response Time	1ms/1ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	M12 Connector
Material Active Face	POM

DC3 Wire 10-30V NPN/N.O.	HS3-CS30-N11-E4
DC3 Wire 10-30V NPN/N.C.	HS3-CS30-N12-E4
DC3 Wire 10-30V PNP/N.O.	HS3-CS30-P11-E4
DC3 Wire 10-30V PNP/N.C.	HS3-CS30-P12-E4
