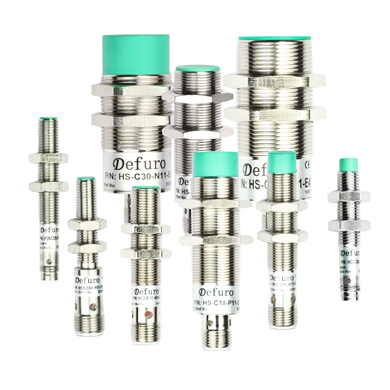

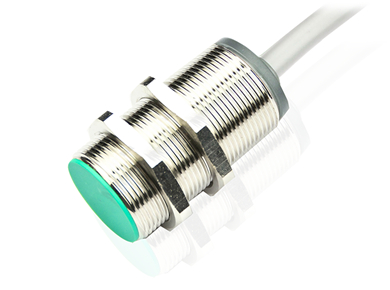

Extended sensing distance sensors

  • Good stability, Long sensing distance.

  • Operating voltage: 10-30VDC.

  • Have AC or AC/DC can choose.

  • Output function: NO/NC

  • Protection level: IP67

  • With polarity, overload, short circuit protection.

  • Wiring method: lead wire type、connector type

  • Operating temperature: -25℃...+70℃

  • The sensing distance can reach 3 times of the normal switch, and the distance is especially long of ferromagnetic metal detection.High sensitivity detection of line and points objects.



Data download
M18*91 Shielded​ 6~12.0mm Nickel plated brass 18-30VDC Analog output PNP HS-C18 M12 Connector
M18*80 Shielded 6~12.0mm Nickel plated brass 18-30VDC Analog output PNP HS-C18 PVC, 2 m
M12*68 Shielded 2~6.0mm Nickel plated brass 18-30VDC Analog output PNP HS2-C12 M12 Connector
M12*50 Shielded 2~6.0mm Nickel plated brass 18-30VDC Analog output PNP HS2-C12 PVC, 2 m
M30*53 Non-Shielded 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS30 M12 Connector
M30*48 Shielded 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS30 M12 Connector
M30*40 Non-Shielded 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS30 PVC, 2 m
M30*35 Shielded 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS30 PVC, 2 m
M30*75 Non-Shielded 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G30 M12 Connector
M30*75 Shielded 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G30 M12 Connector
M30*55 Non-Shielded​ 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G30 PVC, 2 m
M30*55 Shielded 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G30 PVC, 2 m
M30*53 Non-Shielded​ 25.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS30 M12 Connector
M30*48 Shielded 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS30 M12 Connector
M30*40 Non-Shielded​ 25.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS30 PVC, 2 m
M30*35 Shielded 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS30 PVC, 2 m
M30*75 Non-Shielded​ 25.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G30 M12 Connector
M30*75 Shielded 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G30 M12 Connector
M30*55 Non-Shielded​ 25.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G30 PVC, 2 m
M30*55 Shielded 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G30 PVC, 2 m
M18*65 Non-Shielded​ 20.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G18 M12 Connector
M18*65 Shielded 12.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G18 M12 Connector
M18*55 Non-Shielded​ 20.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G18 PVC, 2 m
M18*55 Shielded 12.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G18 PVC, 2 m
M18*53 Non-Shielded​ 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS18 M12 Connector
M18*48 Shielded 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS18 M12 Connector
M18*40 Non-Shielded​ 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS18 PVC, 2 m
M18*35 Shielded 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS18 PVC, 2 m
M18*65 Non-Shielded 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G18 M12 Connector
M18*65 Shielded 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G18 M12 Connector
M18*55 Non-Shielded​ 16.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G18 PVC, 2 m
M18*55 Shielded 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G18 PVC, 2 m
M12*60 Non-Shielded 10.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G12 M12 Connector
M12*60 Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G12 M12 Connector
M12*50 Non-Shielded​ 10.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G12 PVC, 2 m
M12*50 Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G12 PVC, 2 m
M12*50 Non-Shielded​ 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS12 M12 Connector
M12*50 Shielded​ 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS12 M12 Connector
M12*30 Non-Shielded​ 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS12 PVC, 2 m
M12*30 Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS12 PVC, 2 m
M12*60 Non-Shielded​ 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G12 M12 Connector
M12*60 Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G12 M12 Connector
M12*50 Non-Shielded​ 8.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G12 PVC, 2 m
M12*50 Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G12 PVC, 2 m
M8*45 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS08 M8 Connector
M8*60 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G08 M8 Connector
M8*30 Shielded​ 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-GS08 PVC, 2 m
M8*40 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-G08 PVC, 2 m
M8*45 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS08 M8 Connector
M8*60 Shielded​ 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G08 M8 Connector
M8*30 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-GS08 PVC, 2 m
M8*40 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-G08 PVC, 2 m
M30*53 Non-Shielded​ 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS30 M12 Connector
M30*48 Shielded​ 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS30 M12 Connector
M30*40 Non-Shielded​ 40.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS30 PVC, 2 m
M30*35 Shielded 22.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS30 PVC, 2 m
M30*53 Non-Shielded​ 25.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS30 M12 Connector
M30*48 Shielded 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS30 M12 Connector
M30*40 Shielded 22.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS30 PVC,2m
M30*35 Shielded​ 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS30 PVC,2m

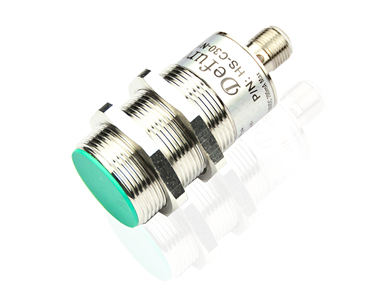

M30*75 Non-Shielded​ 40.0mm stainless steel 10-30VDC DC 3 Wire HS3-C30 M12 Connector
M30*75 Shielded 22.0mm stainless steel 10-30VDC DC 3 Wire HS3-C30 M12 Connector
M30*55 Non-Shielded​ 40.0mm stainless steel 10-30VDC DC 3 Wire HS3-C30 PVC,2m
M30*55 Shielded 22.0mm stainless steel 10-30VDC DC 3 Wire HS3-C30 PVC,2m
M30*75 Non-Shielded​ 25.0mm stainless steel 10-30VDC DC 3 Wire HS2-C30 M12 Connector
M30*75 Shielded 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-C30 M12 Connector
M30*55 Non-Shielded​ 25.0mm stainless steel 10-30VDC DC 3 Wire HS2-C30 PVC,2m
M30*55 Shielded 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-C30 PVC,2m
M18*53 Non-Shielded​ 20.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS18 M12 Connector
M18*48 Shielded 12.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS18 M12 Connector
M18*40 Non-Shielded​ 20.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS18 PVC, 2 m
M18*35 Shielded​ 12.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS18 PVC, 2 m
M18*53 Non-Shielded​ 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS18 M12 Connector
M18*48 Shielded 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS18 M12 Connector
M18*40 Non-Shielded​ 16.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS18 PVC, 2 m
M18*35 Shielded​ 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS18 PVC, 2 m
M18*65 Non-Shielded​ 20.0mm stainless steel 10-30VDC DC 3 Wire HS3-C18 M12 Connector
M18*65 Shielded 12.0mm stainless steel 10-30VDC DC 3 Wire HS3-C18 M12 Connector
M18*55 Non-Shielded 20.0mm stainless steel 10-30VDC DC 3 Wire HS3-C18 PVC, 2 m
M18*55 Shielded 12.0mm stainless steel 10-30VDC DC 3 Wire HS3-C18 PVC, 2 m
M18*65 Non-Shielded​ 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-C18 M12 Connector
M18*65 Shielded 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-C18 M12 Connector
M18*55 Non-Shielded​ 16.0mm stainless steel 10-30VDC DC 3 Wire HS2-C18 PVC, 2 m
M18*55 Shielded 0.8mm stainless steel 10-30VDC DC 3 Wire HS2-C18 PVC, 2 m
M12*50 Non-Shielded​ 10.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS12 M12 Connector
M12*50 Shielded​ 0.6mm stainless steel 10-30VDC DC 3 Wire HS3-CS12 M12 Connector
M12*35 Non-Shielded​ 10.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS12 PVC, 2 m
M12*35 Shielded 6.0mm stainless steel 10-30VDC DC 3 Wire HS3-CS12 PVC, 2 m
M12*50 Non-Shielded 0.8mm stainless steel 10-30VDC DC 3 Wire HS2-CS12 M12 Connector
M12*50 Shielded​ 4.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS12 M12 Connector
M12*35 Non-Shielded​ 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS12 PVC, 2 m
M12*35 Shielded​ 4.0mm stainless steel 10-30VDC DC 3 Wire HS2-CS12 PVC, 2 m
M12*60 Non-Shielded​ 10.0mm stainless steel 10-30VDC DC 3 Wire HS3-C12 M12 Connector
M12*60 Shielded​ 6.0mm stainless steel 10-30VDC DC 3 Wire HS3-C12 M12 Connector
M12*50 Non-Shielded​ 10.0mm stainless steel 10-30VDC DC 3 Wire HS3-C12 PVC,2m
M12*50 Shielded​ 6.0mm stainless steel 10-30VDC DC 3 Wire HS3-C12 PVC,2m
M12*60 Non-Shielded​ 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-C12 M12 Connector
M12*60 Shielded​ 4.0mm stainless steel 10-30VDC DC 3 Wire HS2-C12 M12 Connector
M12*50 Non-Shielded​ 8.0mm stainless steel 10-30VDC DC 3 Wire HS2-C12 PVC,2m
M12*50 Shielded​ 4.0mm stainless steel 10-30VDC DC 3 Wire HS2-C12 PVC,2m
Q8*8*30 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-QS08 PVC, 2 m
Q8*8*50 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-Q08 M8 Connector
Q8*8*40 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-Q08 PVC, 2 m
M8*53 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 M12 Connector
M8*53 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 M12 Connector
M8*45 Non-Shielded 0.6mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 M8 Connector
M8*45 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 M8 Connector
M8*30 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 PVC, 2 m
M8*30 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CS08 PVC, 2 m
M8*70 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 M12 Connector
M8*70 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 M12 Connector
M8*60 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 M8 Connector
M8*60 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 M8 Connector
M8*40 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 PVC, 2 m
M8*40 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-C08 PVC, 2 m
M8*53 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 M12 Connector
M8*53 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 M12 Connector
M8*45 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 M8 Connector
M8*45 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 M8 Connector
M8*30 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 PVC, 2 m
M8*30 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CS08 PVC, 2 m
M8*70 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 M12 Connector
M8*70 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 M12 Connector
M8*60 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 M8 Connector
M8*60 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 M8 Connector
M8*40 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 PVC, 2 m
M8*40 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-C08 PVC, 2 m

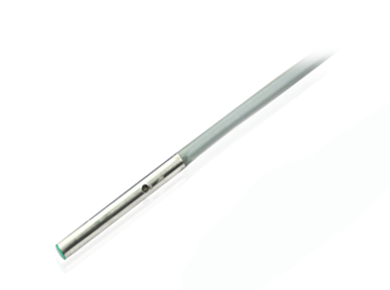

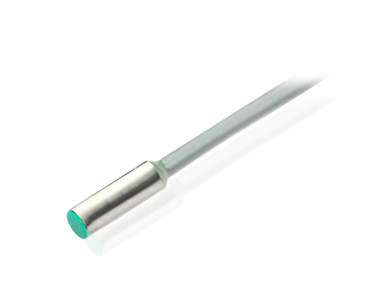

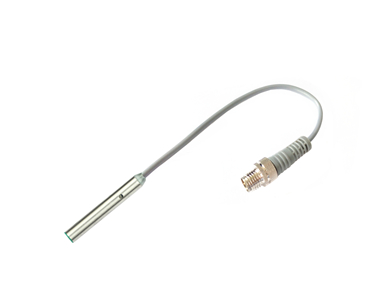

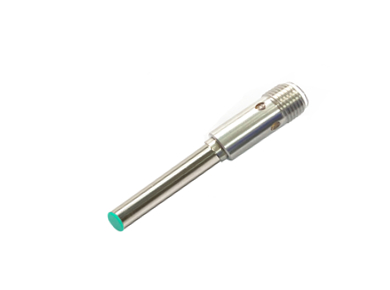

φ6.5*70 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 M12 Connector
φ6.5*70 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 M12 Connector
φ6.5*60 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 M8 Connector
φ6.5*60 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 M8 Connector
φ6.5*40 Non-Shielded 6.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 PVC, 2 m
φ6.5*40 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-S6.5 PVC, 2 m
φ6.5*70 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 M12 Connector
φ6.5*70 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 M12 Connector
φ6.5*60 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 M8 Connector
φ6.5*60 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 M8Connector
φ6.5*40 Non-Shielded 4.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 PVC, 2 m
φ6.5*40 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-S6.5 PVC, 2 m
M12*45 Shielded 6.0mm Nickel plated brass 10-30VDC DC 3 Wire HS3-CR12 M12 Connector
M12*22 Shielded 6.0mm Nickel plated brass 10-30VDC DC 3 Wire HS3-CR12 PVC, 2 m
M12*45 Shielded 4.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-CR12 M12 Connector
M12*22 Shielded 4.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-CR12 PVC, 2 m

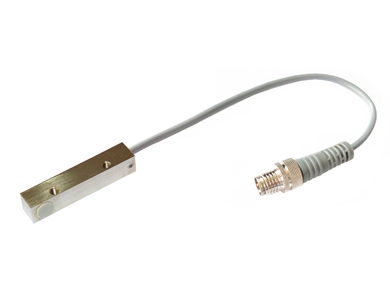

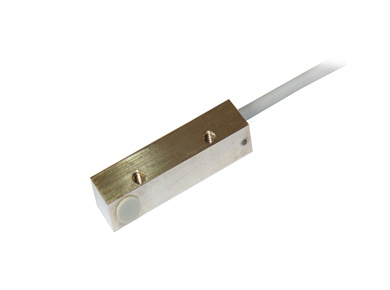

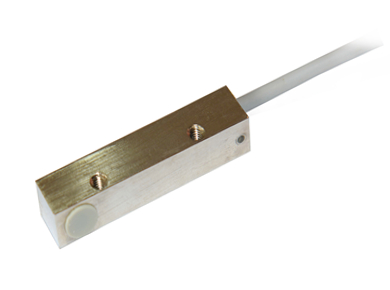

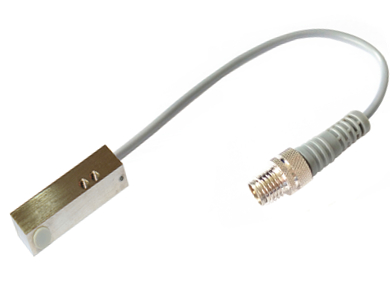

Q8*8*28 Shielded 3.0mm Nickel plated brass 10-30VDC DC 3 Wire HS3-QR08 M8 Connector
Q8*8*16 Shielded 3.0mm Nickel plated brass 10-30VDC DC 3 Wire HS3-QR08 PVC,2 m, M8Connector
Q8*8*16 Shielded 3.0mm Nickel plated brass 10-30VDC DC 3 Wire HS3-QR08 PVC, 2 m
Q8*8*28 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-QR08 M8 Connector
Q8*8*16 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-QR08 PVC,2 m, M8Connector
Q8*8*16 Shielded 2.0mm Nickel plated brass 10-30VDC DC 3 Wire HS2-QR08 PVC, 2 m
φ8*32 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR08 M8 Connector
φ8*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR08 PVC,2 m, M8Connector
φ8*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR08 PVC, 2 m
φ8*32 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR08 M8 Connector
φ8*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR08 PVC,2 m, M8Connector
φ8*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR08 PVC, 2 m

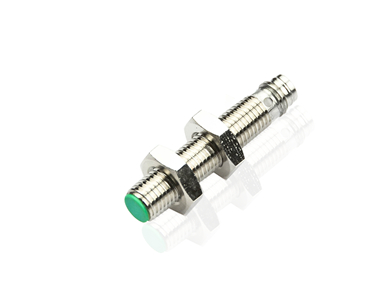

M8*32 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CR08 M8 Connector
M8*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CR08 PVC,2 m, M8Connector
M8*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-CR08 PVC, 2 m
M8*32 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CR08 M8 Connector
M8*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CR08 PVC,2 m, M8Connector
M8*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-CR08 PVC, 2 m
φ6.5*32 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR6.5 M8 Connector
φ6.5*32 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR6.5 M8 Connector
φ6.5Y*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR6.5 PVC,2 m, M8Connector
φ6.5Y*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR6.5 PVC, 2 m
φ6.5*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR6.5 PVC,2 m, M8Connector
φ6.5*18 Shielded 3.0mm Stainless steel 10-30VDC DC 3 Wire HS3-SR6.5 PVC, 2 m
φ6.5Y*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR6.5 PVC,2 m, M8Connector
φ6.5Y*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR6.5 PVC, 2 m
φ6.5*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR6.5 PVC,2 m, M8Connector
φ6.5*18 Shielded 2.0mm Stainless steel 10-30VDC DC 3 Wire HS2-SR6.5 PVC, 2 m
M5*30 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-CL05 PVC, 2 m

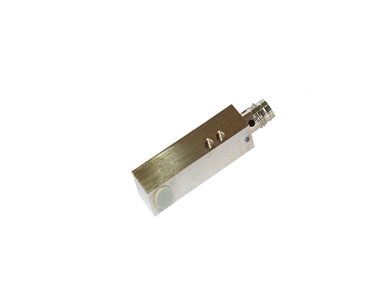

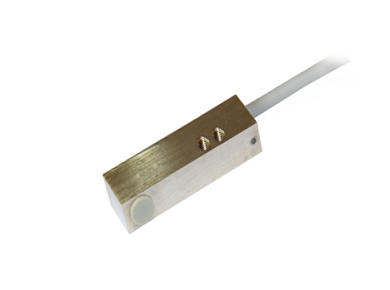

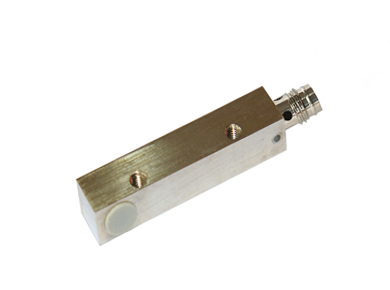

Q5*5*26 Shielded 1.5mm Nickel plated brass 10-30VDC DC 3 Wire HS2-Q05 PVC,2 m, M8Connector

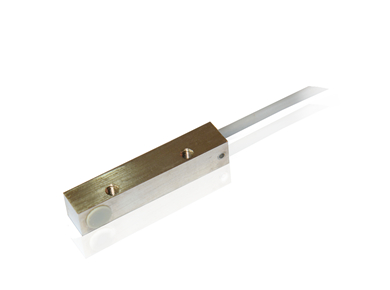

Q5*5*26 Shielded 1.5mm Nickel plated brass 10-30VDC DC 3 Wire HS2-Q05 PVC, 2 m
M5*40 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-C05 M8 Connector
M5*28 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-C05 PVC, 2 m
M5*28 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-C05 PVC, 2 m
M5*25 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-CS05 PVC,2 m, M8Connector
M5*25 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-CS05 PVC, 2 m
φ4*25 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-S04 PVC,2 m, M8Connector
φ4*25 Shielded 1.5mm Stainless steel 10-30VDC DC 3 Wire HS2-S04 PVC, 2 m

Scan on the public

X

Download

After approval, we will contact you within 24 hours

Name *
Tel*
Email
Message
X

Sample

After approval, we will contact you within 24 hours

Name *
Tel *
Email
Message
X
Member login
Forgot password There is no account?Register
X
Registered members
X
Forgot password
