Q17x17x29 DC 3 Wire Square economy inductive proximity switch Return Data download

Product pictures

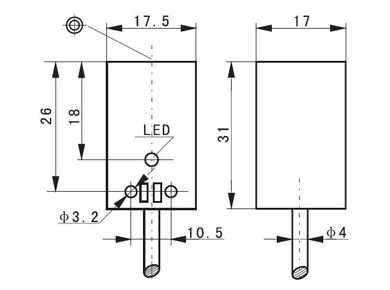

Size chart

Characteristics

Specifications

Diameter	Q171729
Mounting	Shielded
Operating distance	2.0mm
Housing material	ABS
Operating voltage	10-40VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<2.5V
Switching Frequency	500HZ
Response Time	0.5ms/0.5ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	2m PVC Cable
Material Active Face	POM

DC3 Wire 10-40V NPN/N.O.	HS-Q17-N01
DC3 Wire 10-40V NPN/N.C.	HS-Q17-N02
DC3 Wire 10-40V PNP/N.O.	HS-Q17-P01
DC3 Wire 10-40V PNP/N.C.	HS-Q17-P02
