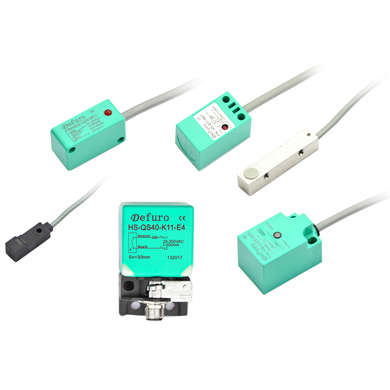

Square economy series sensors

Products

Quick navigation

7*24h Service hotline0571 86094553

Scan on the official WeChat platform

Economy、Versatility、High reliability.
Operating voltage: 10-30VDC.
Output function: NPN/PNP,NO/NC,2wire can choose.
Protection level: IP67
With polarity, overload, short circuit protection.
Operating temperature:-25℃...+70℃
With the unique Defbest technology to increases the anti-interference, reduces the influence of humidity and temperature, and improves the product precision.

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	model	Connection type

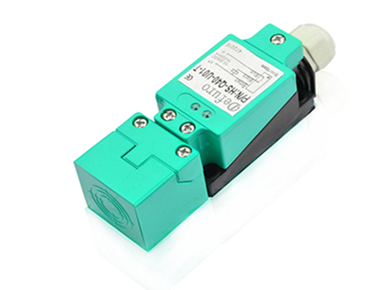

Q4040118	Match Shielded	20.0mm	PBT	10-30VDC	DC 3 Wire	HS-Q40	M12 Connector
Q4040118	Non-Shielded	30.0mm	PBT	10-30VDC	DC 3 Wire	HS-Q40	-
Q4040118	Shielded	15.0mm	PBT	10-30VDC	DC 3 Wire	HS-Q40	-
Q4040118	Non-Shielded	30.0mm	PBT	10-30VDC	DC 3 Wire	HS-Q40	M12 Connector
QS4040118	Shielded	15.0mm	PBT	10-30VDC	DC 3 Wire	HS-Q40	M12 Connector

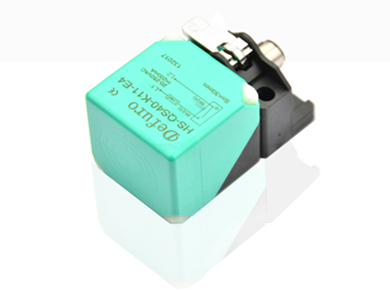

QS404065	Non-Shielded	30.0mm	PBT	10-30VDC	DC 3 Wire	HS-QS40	M12 Connector
QS404065	Shielded	15.0mm	PBT	10-30VDC	DC 3 Wire	HS-QS40	M12 Connector

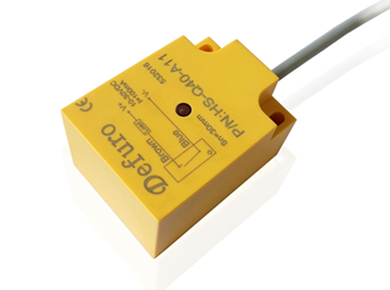

Q404053	Shielded	15.0mm	ABS	10-40VDC	DC 3 Wire	HS-Q40	PVC,2m
Q303052	Shielded	15.0mm	ABS	10-40VDC	DC 3 Wire	HS-Q30	PVC,2m
Q252539	Shielded	8.0mm	ABS	10-40VDC	DC 3 Wire	HS-Q25	PVC,2m
QF183010	Shielded	5.0mm	ABS	10-30VDC	DC 3 Wire	HS-QF18	PVC,2m

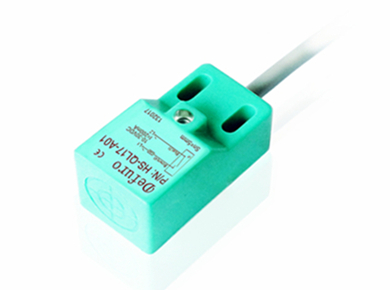

Q171736	Shielded	5.0mm	ABS	10-40VDC	DC 3 Wire	HS-QL17	PVC,2m

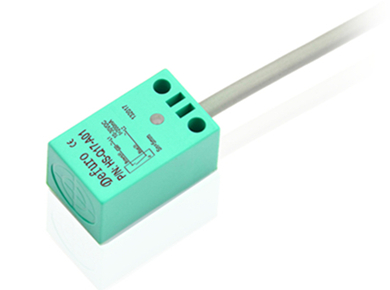

Q171729	Shielded	2.0mm	ABS	10-40VDC	DC 3 Wire	HS-Q17	PVC,2m
Q162810	Non-Shielded	6.0mm	PBT	10-30VDC	DC 3 Wire	HS3-Q28	PVC, 2 m
Q162810	Shielded	3.0mm	PBT	10-30VDC	DC 3 Wire	HS3-Q28	PVC, 2 m
Q162810	Non-Shielded	6.0mm	PBT	10-30VDC	DC 3 Wire	HS3-Q28	PVC, 2 m
Q162810	Shielded	3.0mm	PBT	10-30VDC	DC 3 Wire	HS3-Q28	PVC, 2 m

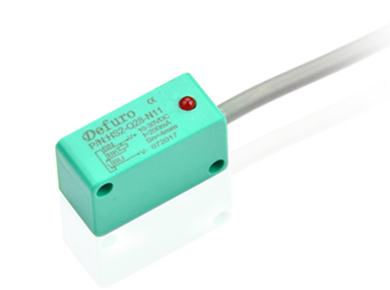

Q162810	Non-Shielded	4.0mm	PBT	10-30VDC	DC 3 Wire	HS2-Q28	PVC, 2 m
Q162810	Shielded	2.0mm	PBT	10-30VDC	DC 3 Wire	HS2-Q28	PVC, 2 m
Q162810	Non-Shielded	4.0mm	PBT	10-30VDC	DC 3 Wire	HS2-Q28	PVC, 2 m
Q162810	Shielded	2.0mm	PBT	10-30VDC	DC 3 Wire	HS2-Q28	PVC, 2 m
