Q8x8x50 DC 3 Wire Extended sensing distance inductive proximity switch P3 Return Data download

Product pictures

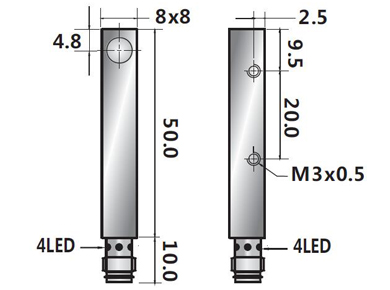

Size chart

Characteristics

Specifications

Diameter	Q8850
Mounting	Shielded
Operating distance	2.0mm
Housing material	Nickel plated brass
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	2KHZ
Response Time	0.1ms/0.1ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	M8 Connector
Material Active Face	POM

DC3 Wire 10-30V NPN/N.O.	HS2-Q08-N01-P3
DC3 Wire 10-30V NPN/N.C.	HS2-Q08-N02-P3
DC3 Wire 10-30V PNP/N.O.	HS2-Q08-P01-P3
DC3 Wire 10-30V PNP/N.C.	HS2-Q08-P02-P3
