Intelligent digital optical fiber sensors Return Data download

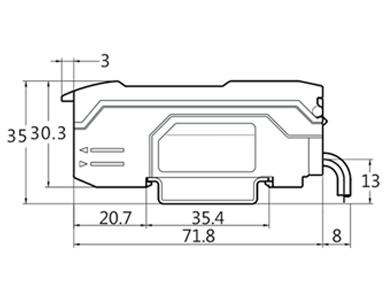

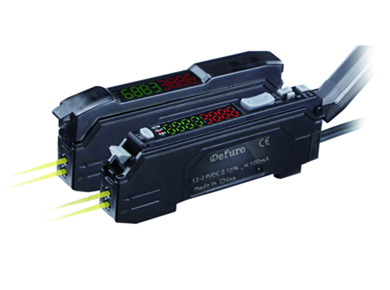

Product pictures Size chart
Characteristics Specifications
Diameter71.8*30.5*9.8
MountingAmplifier
Operating distance

Retro-reflective:0-100mm;

Through beam :0-1000mm

Housing material

Housing:PBT,

Operation panel:PC,Lens:PC

Operating voltage

12-24VDC±10%

(ripple P-P:Max.10%)

Consumption current

NPN:Normal: maximum 900mW

 (24V, maximum 36mA;At 12V,

maximum at 48mA)
Power saving mode: Max. 800mW

(24V, Max. 32mA;At 12V, Max. 39mA)

PNP:Normal: maximum 950mW

 (24V, maximum 39mA;At 12V,

maximum at 52mA)
Power saving mode: Max. 850mW

(24V, Max. 35mA;At 12V,

Max. 44mA)

Response Time

Anti OFF:50μs(HIGN SPEED)/

250μs(FINE)/1ms(SUPER)/

16ms(MEGA)

Short-circuit Protection

Reverse electrode protection

 (power supply),

over current protection

 (output),

over voltage (output)

Control output

NPN collector open circuit 24V,

output maximum :100mA

or smaller

 (connect multiple sub-modules);

residual voltage: 1V or less

PNP collector open circuit 24V,

1 channel output maximum: 100mA

or less, residual voltage: 1V or less

Output functionLight-ON/Dark-ON(Switch Mode selection)
Operating Temperature-20℃...+55℃(No freeze)
Ambient Humidity35 to 85% RH (No condensation)
Ambient luminance

Sunlight:30,000Lux,

Incandescent light:20,000Lux

WeightAbout 66g
Connection typeOptical fiber
PhotosourceRED LED
OutputDC 3 Wire
Shock resistance

500m/S2,Use acceleration: 50g,

In X,Y, and Z direction

 for each 3 times.

Vibration resistance

Frequency:10-55HZ,

Compound amplitude:1.5mm,

In X,Y,and Z direction

for each 2 hours.



DC 3 Wire 12-24V NPN Light N.O./Dark N.O.HLF-NS
DC 3 Wire 12-24V PNP Light N.O./Dark N.O.HLF-PS
