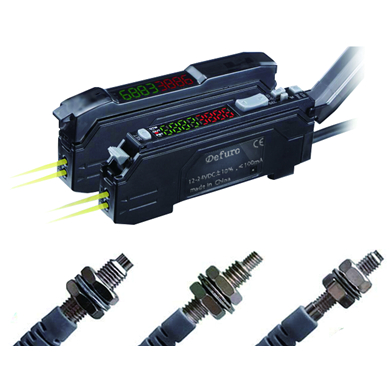

Intelligent digital optical fiber sensors

  • Optical fiber active face can be customized.

  • Operating voltage: 12-24VDC±10%,10-30VDC.

  • Output function: NPN/PNP.

  • With polarity, overload, short circuit protection.

  • Wiring method:lead wire type、connector type.

  • Operating temperature:-20℃...+55℃

  • Light-ON,dark-ON.convertible NO or NC with the delay function.

  • With Non-destructive transmission, anti-light interference, anti-impact, anti-vibration, saturation recovery, response speed up to 50 microseconds.

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type
71.8*30.5*9.8 Amplifier Retro-reflective:0-100mm;Through beam :0-1000mm Housing:PBT,Operation panel:PC,Lens:PC 12-24VDC DC 3 Wire HLF Optical fiber
