φ34 AC/DC 2 Wire Wide-voltage/High-voltage capacotive proximity switch Return Data download

Product pictures

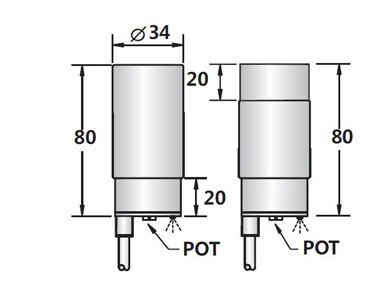

Size chart

Characteristics

Specifications

Diameter	φ34*80
Mounting	Non-Shielded
Operating distance	2~30.0mm adjustable
Housing material	PBT
Operating voltage	20-250VAC,50-60Hz; 20-250VDC
Ripple Voltage	DC Ripple <10%
Min.Load Current	5mA
No-Load Current	<2.5mA
Max.Load Current	200mA
Leakge Current	<2.5mA
Voltage Drop	≤10VAC;≤8VDC
Switching Frequency	25HZ AC ; 40Hz DC
Response Time	10ms/10ms
Overload Current	2.2A for 20ms
Switching Hysteresis	1%-15% (Sr)
Repeat Accuracy	<1%(Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<±15%(Sr)
Short-circuit Protection	NO
Output indicator	LED
Output	AC/DC 2 Wire
Connection type	2m PVC Cable
Material Active Face	PBT

AC/DC2 Wire 20-250V N.O.	HC-P34-U11
AC/DC2 Wire 20-250V N.C.	HC-P34-U12
