Current position：Home - Products - Capacitive sensors - Wide-voltage/High-voltage capacitive sensors

Reliable,cost-effective and remarkable performance.
Operating voltage: 20-250VAC,20-250VDC,AC/DC 20-250V
Output function: NO/NC,2wire.
Protection level: IP67
With polarity, overload, short circuit protection.
Wiring method:lead wire type、connector type
Operating temperature:-25℃...+70℃
With the unique Defbest technology to increases the anti-interference, reduces the influence of humidity and temperature, and improves the product precision.

Data download

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	model	Connection type

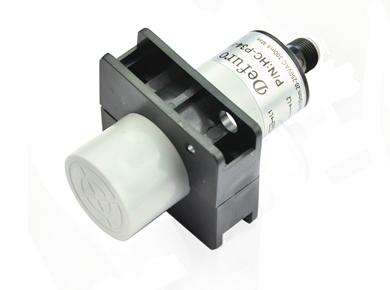

φ34*90	Non-Shielded	2~30.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P34	M12 Connector
φ34*90	Shielded	2~25.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P34	M12 Connector

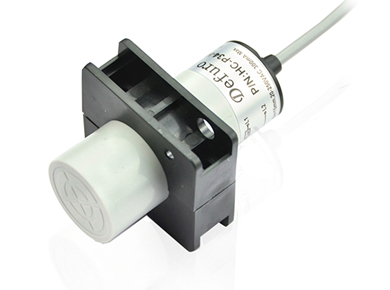

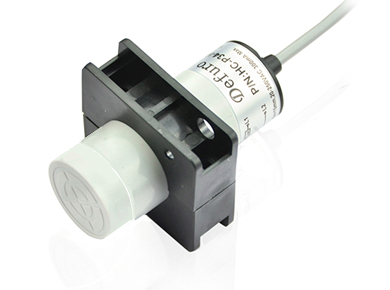

φ34*80	Non-Shielded	2~30.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P34	PVC, 2 m
φ34*80	Shielded	2~25.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P34	PVC, 2 m

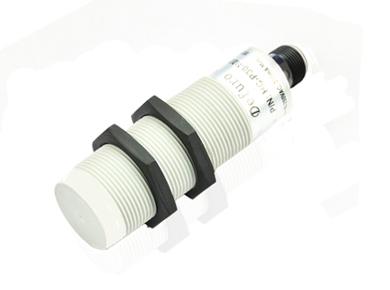

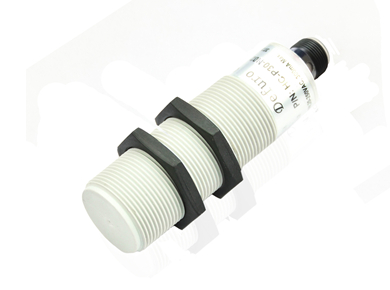

M30*90	Non-Shielded	2~25.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P30	M12 Connector
M30*90	Shielded	2~20.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P30	M12 Connector

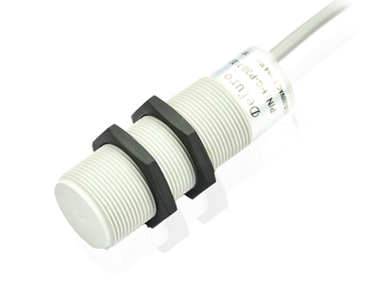

M30*80	Non-Shielded	2~25.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P30	PVC, 2 m
M30*80	Shielded	2~20.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P30	PVC, 2 m

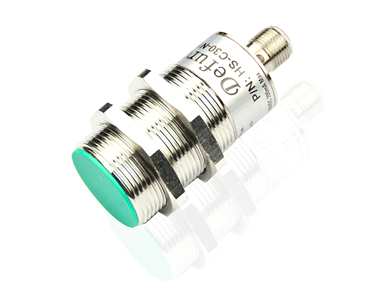

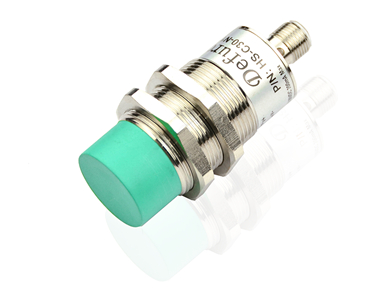

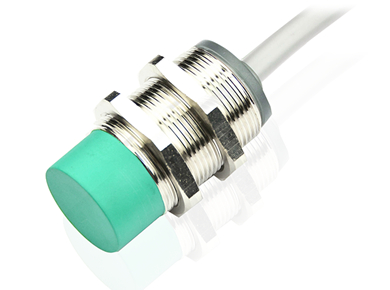

M30*90	Non-Shielded	2~25.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C30	M12 Connector
M30*90	Shielded	2~20.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C30	M12 Connector

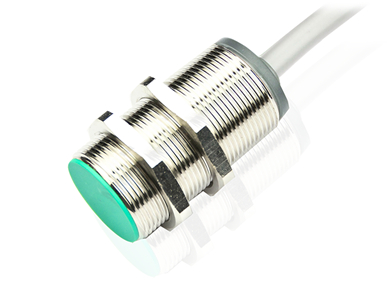

M30*80	Non-Shielded	2~25.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C30	PVC, 2 m
M30*80	Shielded	2~20.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C30	PVC, 2 m

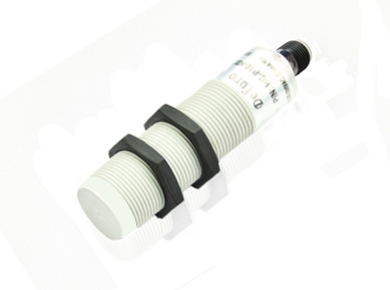

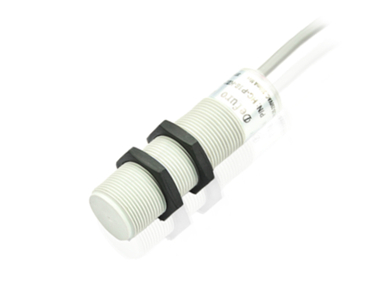

M18*100	Non-Shielded	2~15.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P18	M12 Connector
M18*100	Shielded	2~8.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P18	M12 Connector

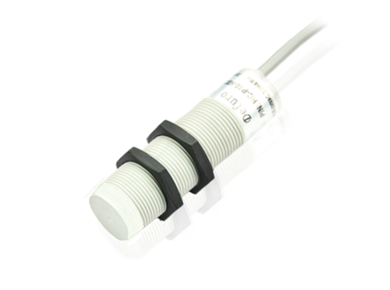

M18*80	Non-Shielded	2~15.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P18	PVC, 2 m
M18*80	Shielded	2~8.0mm adjustable	PBT	20-250V AC/DC	AC/DC 2 Wire	HC-P18	PVC, 2 m

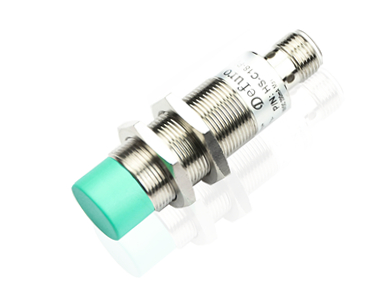

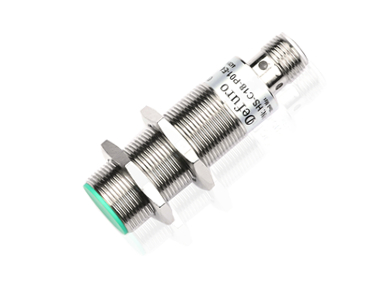

M18*100	Non-Shielded	2~15.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C18	M12 Connector
M18*100	Shielded	2~8.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C18	M12 Connector

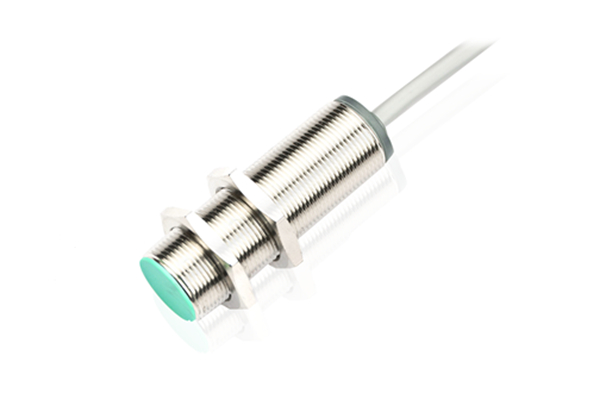

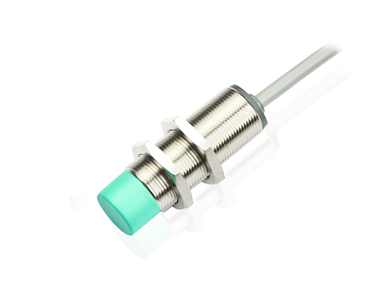

M18*80	Non-Shielded	2~15.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C18	PVC, 2 m
M18*80	Shielded	2~8.0mm adjustable	Nickel plated brass	20-250V AC/DC	AC/DC 2 Wire	HC-C18	PVC, 2 m
φ34*90	Non-Shielded	2~35.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P34	M12 Connector
φ34*90	Shielded	2~25.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P34	M12 Connector
φ34*80	Non-Shielded	2~35.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P34	PVC, 2 m
φ34*80	Shielded	2~25.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P34	PVC, 2 m
M30*93	Non-Shielded	2~30.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P30	M12 Connector
M30*93	Shielded	2~20.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P30	M12 Connector
M30*80	Non-Shielded	2~30.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P30	PVC, 2 m
M30*80	Shielded	2~20.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P30	PVC, 2 m
M30*93	Non-Shielded	2~30.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C30	M12 Connector
M30*93	Shielded	2~20.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C30	M12 Connector
M30*80	Non-Shielded	2~30.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C30	PVC, 2 m
M30*80	Shielded	2~20.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C30	PVC, 2 m
M18*93	Non-Shielded	2~15.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P18	M12 Connector
M18*93	Shielded	2~8.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P18	M12 Connector
M18*80	Non-Shielded	2~15.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P18	PVC, 2 m
M18*80	Shielded	2~8.0mm adjustable	PBT	20-250VAC	AC 2 Wire	HC-P18	PVC, 2 m
M18*93	Non-Shielded	2~15.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C18	M12 Connector
M18*93	Shielded	2~8.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C18	M12 Connector
M18*80	Non-Shielded	2~15.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C18	PVC, 2 m
M18*80	Shielded	2~8.0mm adjustable	Nickel plated brass	20-250VAC	AC 2 Wire	HC-C18	PVC, 2 m
