P30 AC 2 Wire Wide-voltage/High-voltage capacotive proximity switch E4 Return Data download

Product pictures

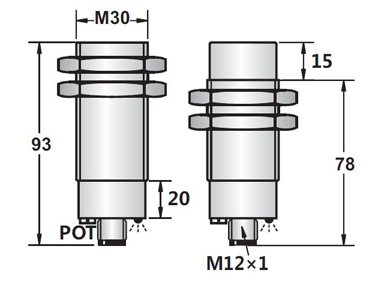

Size chart

Characteristics

Specifications

Diameter	M30*93
Mounting	Shielded
Operating distance	2~20.0mm adjustable
Housing material	PBT
Operating voltage	20-250VAC
Min.Load Current	5mA
No-Load Current	<2.5mA
Max.Load Current	300mA
Leakge Current	<2.5mA
Voltage Drop	<9VAC AT 300mA
Switching Frequency	25HZ
Response Time	10ms/10ms
Overload Current	5A
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<5.0%(Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	NO
Output indicator	LED
Output	AC 2 Wire
Connection type	M12 Connector
Material Active Face	PBT

AC2 Wire 20-250V N.O.	HC-P30-K01-E4
AC2 Wire 20-250V N.C.	HC-P30-K02-E4
