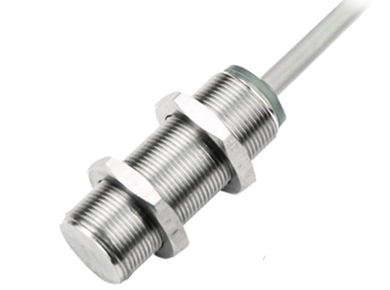

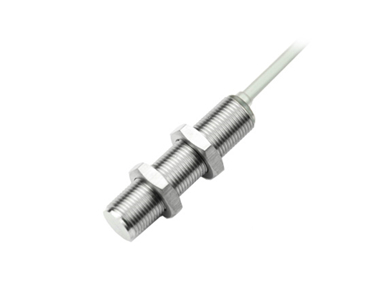

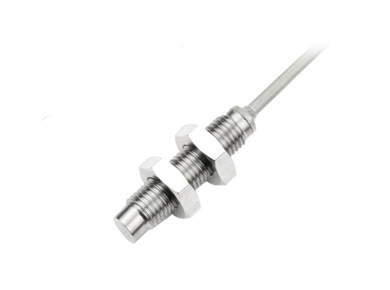

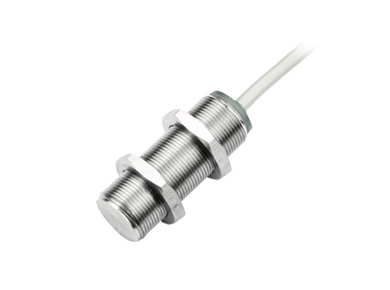

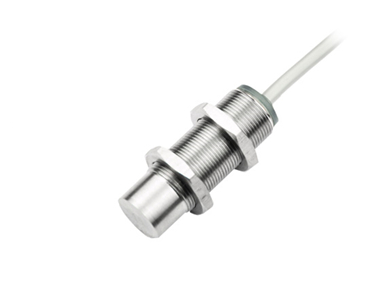

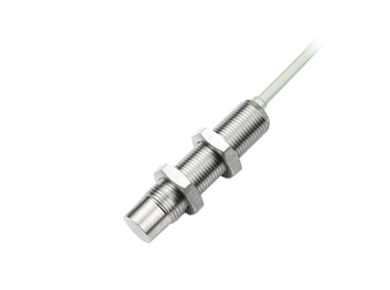

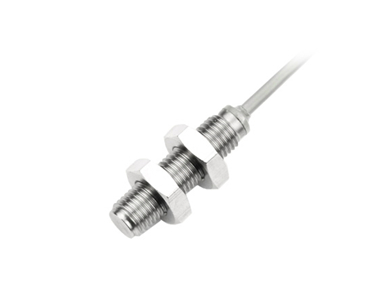

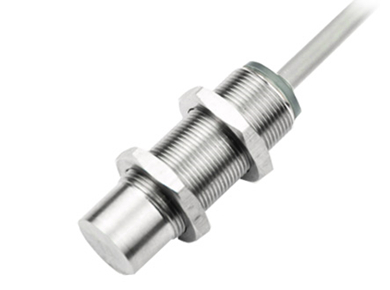

Integrated stainless steel housing including induction.
Operating voltage: 10-30VDC.
Have AC or AC/DC (Only HS series)
Output function: NPN/PNP,NO/NC,2wire can choose.
Protection level: IP67
With polarity, overload, short circuit protection.
Wiring method: lead wire type、connector type
Operating temperature: -25℃...+70℃
With corrosion resistant stainless steel shall not be disturbed by any gas or liquid,also resistance to mechanical force and mechanical impact.
Data download
| Diameter | Mounting | Operating distance/Sn | Housing material | Operating voltage | Output | model | Connection type | |
|---|---|---|---|---|---|---|---|---|
| M30*53 | Non-Shielded | 15.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS30 | M12 Connector | |
| M30*48 | Shielded | 10.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS30 | M12 Connector | |
 |
M30*40 | Non-Shielded | 15.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS30 | PVC, 2 m |
 |
M30*35 | Shielded | 10.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS30 | PVC, 2 m |
| M30*75 | Non-Shielded | 15.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G30 | M12 Connector | |
| M30*75 | Shielded | 10.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G30 | M12 Connector | |
|
M30*55 | Non-Shielded | 15.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G30 | PVC, 2 m |
|
M30*55 | Shielded | 10.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G30 | PVC, 2 m |
| M18*53 | Non-Shielded | 8.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS18 | M12 Connector | |
| M18*48 | Shielded | 5.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS18 | M12 Connector | |
 |
M18*40 | Non-Shielded | 8.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS18 | PVC, 2 m |
 |
M18*35 | Shielded | 5.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS18 | PVC, 2 m |
| M18*65 | Non-Shielded | 8.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G18 | M12 Connector | |
| M18*65 | Shielded | 5.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G18 | M12 Connector | |
|
M18*55 | Non-Shielded | 8.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G18 | PVC, 2 m |
|
M18*55 | Shielded | 5.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G18 | PVC, 2 m |
| M12*50 | Non-Shielded | 4.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS12 | M12 Connector | |
| M12*50 | Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS12 | M12 Connector | |
 |
M12*30 | Non-Shielded | 4.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS12 | PVC, 2 m |
 |
M12*30 | Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS12 | PVC, 2 m |
| M12*60 | Non-Shielded | 4.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G12 | M12 Connector | |
| M12*60 | Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G12 | M12 Connector | |
|
M12*50 | Non-Shielded | 4.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G12 | PVC, 2 m |
|
M12*50 | Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G12 | PVC, 2 m |
| M8*45 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS08 | M8 Connector | |
| M8*45 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS08 | M8 Connector | |
 |
M8*30 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS08 | PVC, 2 m |
 |
M8*30 | Shielded | 1.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-GS08 | PVC, 2 m |
| M8*60 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G08 | M8 Connector | |
| M8*60 | Shielded | 1.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G08 | M8 Connector | |
|
M8*40 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G08 | PVC, 2 m |
 |
M8*40 | Shielded | 1.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-G08 | PVC, 2 m |
