P12 DC 3 Wire Standard function capacitive proximity switch Return Data download

Product pictures

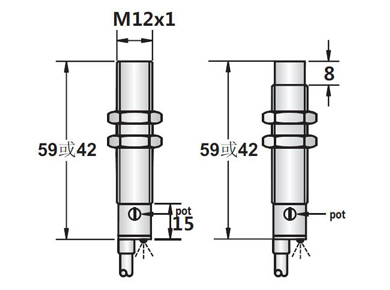

Size chart

Characteristics

Specifications

Diameter	M12*59
Mounting	Shielded
Operating distance	1~3.0mm adjustable
Housing material	PBT
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<2.0VDC
Switching Frequency	100HZ
Response Time	1.5ms/1.5ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<5.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	2m PVC Cable
Material Active Face	PBT

DC3 Wire 10-30V NPN/N.O.	HC-P12-N01
DC3 Wire 10-30V NPN/N.C.	HC-P12-N02
DC3 Wire 10-30V PNP/N.O.	HC-P12-P01
DC3 Wire 10-30V PNP/N.C.	HC-P12-P02
