M8 DC 3 Wire Short-type capacitive proximity switch CS-P3 Return Data download

Product pictures

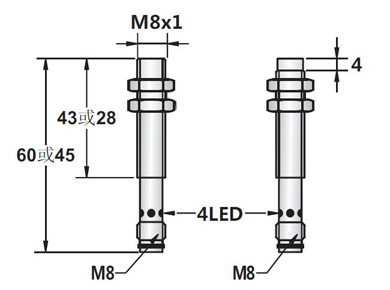

Size chart

Characteristics

Specifications

Diameter	M8*45
Mounting	Shielded
Operating distance	1.0mm
Housing material	Nickel plated brass
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<2.0VDC
Switching Frequency	100HZ
Response Time	1.5ms/1.5ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<5.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	M8 Connector
Material Active Face	POM

DC3 Wire 10-30V NPN/N.O.	HC-CS08-N01-P3
DC3 Wire 10-30V NPN/N.C.	HC-CS08-N02-P3
DC3 Wire 10-30V PNP/N.O.	HC-CS08-P01-P3
DC3 Wire 10-30V PNP/N.C.	HC-CS08-P02-P3
