P20 DC 3 Wire High pressure resistant inductive proximity switch Return Data download

Product pictures

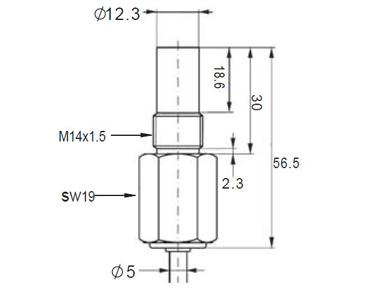

Size chart

Characteristics

Specifications

Diameter	P20*57
Mounting	Shielded
Operating distance	3.0mm
Housing material	stainless steel
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	500HZ
Max.Pressure	500bar
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP68
Operating Temperature	-25℃~80℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	NO
Output	DC 3 Wire
Connection type	2m PVC Cable
Material Active Face	ZrO2

DC3 Wire 10-30V NPN/N.O.	HSP-C2001-N01

DC3 Wire 10-30V PNP/N.O.	HSP-C2001-P01
