M18 DC3 Wire High/low temperature Ext-distance inductive proximity switch CS-E4 Return Data download

Product pictures

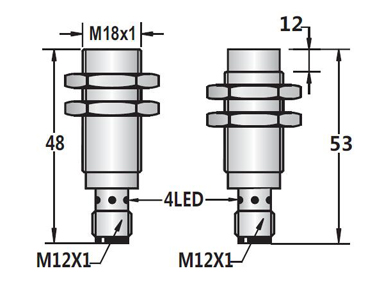

Size chart

Characteristics

Specifications

Diameter	M18*53
Mounting	Non-Shielded
Operating distance	16.0mm
Housing material	stainless steel
Operating voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	200mA
Leakge Current	<0.01mA
Voltage Drop	<2.0V
Switching Frequency	150HZ
Response Time	1ms/1ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-40℃~110℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	220mA
Output indicator	LED
Output	DC 3 Wire
Connection type	M12 Connector
Material Active Face	POM

DC3 Wire 10-30V NPN/N.O.	HST2-CS18-N11-E4
DC3 Wire 10-30V NPN/N.C.	HST2-CS18-N12-E4
DC3 Wire 10-30V PNP/N.O.	HST2-CS18-P11-E4
DC3 Wire 10-30V PNP/N.C.	HST2-CS18-P12-E4
