Current position：Home - Products - Special inductive sensors - Extended temperature sensors
Q40x40x118 DC 3 Wire High temperature inductive proximity switch E4 Return Data download

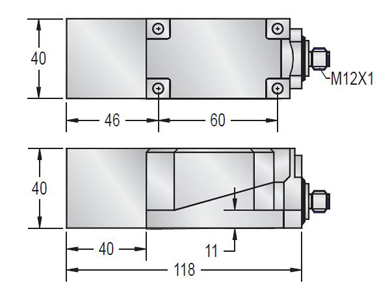

Product pictures Size chart
Characteristics Specifications
DiameterQ40*40*118
MountingNon-Shielded
Operating distance 30.0mm
Housing materialPBT
Operating voltage10-30VDC
Ripple Voltage<10%
No-Load Current<10mA
Max.Load Current200mA
Leakge Current<0.01mA
Voltage Drop<1.5V
Switching Frequency100HZ
Response Time1ms/1ms
Switching Hysteresis<15% (Sr)
Repeat Accuracy<1.0 (Sr)
Protection CategoryIP67
Operating Temperature-25℃~110℃
Temperature Drift<10% (Sr)
Short-circuit ProtectionYES
Overload Current220mA
Output indicatorLED
OutputDC 3 Wire
Connection typeM12 Connector
Material Active FacePBT


DC3 Wire 10-30V NPN/N.O.HSH-Q40-N11-E4
DC3 Wire 10-30V NPN/N.C.HSH-Q40-N12-E4
DC3 Wire 10-30V PNP/N.O.HSH-Q40-P11-E4
DC3 Wire 10-30V PNP/N.C.HSH-Q40-P12-E4
