M18 Analog voltage output inductive proximity switch E4 Return Data download

Product pictures

Size chart

Characteristics

Specifications

Diameter	M18*91
Mounting	Shielded
Operating distance	1~4.0mm
Housing material	Nickel plated brass
Operating voltage	18-30VDC
Ripple Voltage	<10%
No-Load Current	<15mA
Output voltage/Load resistor	0-10VDC/≥4.7KΩ
Output current/Load resistor	－
Linearity	<10% (Sr)
Switching Frequency Max.	100HZ
Reverse polarity protection	YES
Switching Hysteresis	<5% (Sr)
Repeat Accuracy	0.02mm
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	－
On-delay operation	－
Output mode	PNP-analog signal
Connection type	M12 Connector
Material Active Face	PBT
EMC	RFI>3V/m / EFT>1KV / ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2

Analog voltage output PNP	HS-C18-P06-E4

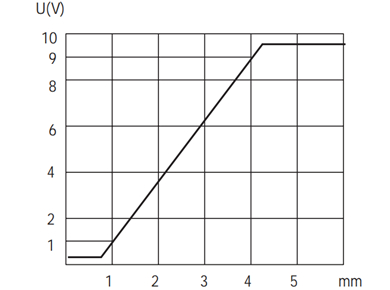

Characteristics

10-7.2 拷贝.jpg
