QF10x10x27 DC 2 Wire Wide-voltage/High-voltage inductive proximity switch Return Data download

Product pictures

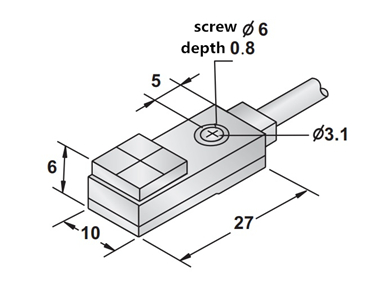

Size chart

Characteristics

Specifications

Diameter	QF101027
Mounting	Non-Shielded
Operating distance	3.0mm
Housing material	PBT
Operating voltage	10-30VDC±10%
Ripple Voltage	<10%
No-Load Current	<0.8mA
Max.Load Current	100mA
Leakge Current	<0.8mA
Voltage Drop	<6.0V
Switching Frequency	1KHZ
Response Time	0.2ms/0.2ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<0.04mm
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	120mA
Output indicator	LED
Output	DC 2 Wire
Connection type	2m PVC Cable
Material Active Face	PBT

DC2 Wire 10-30V N.O.	HS-QF10-A11
DC2 Wire 10-30V N.C.	HS-QF10-A12
