M30 AC/DC 2 Wire High-voltage inductive proximity switch Return Data download

Product pictures

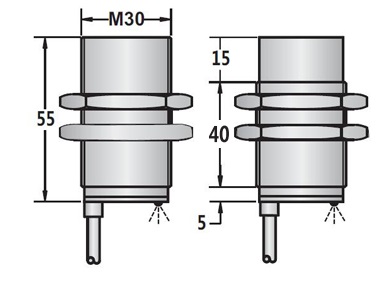

Size chart

Characteristics

Specifications

Diameter	M30*55
Mounting	Non-Shielded
Operating distance	15.0mm
Housing material	stainless steel
Operating voltage	20-250VAC/20-250VDC
Min.Load Current	5mA
No-Load Current	<2.5mA
Max.Load Current	200mA
Leakge Current	<2.5mA
Voltage Drop	<10VAC ; 8VDC
Switching Frequency	25HZ AC ; 40HZ DC
Response Time	10ms/10ms
Surge Current	2.2A for 20ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0%(Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	NO
Output indicator	LED
Output	AC/DC 2 Wire
Connection type	2m PVC Cable
Material Active Face	PBT

AC/DC2 Wire 20-250V N.O.	HS-C30-U11
AC/DC2 Wire 20-250V N.C.	HS-C30-U12
