Current position：Home - Products - Special inductive sensors - Wide-voltage/High-voltage sensors

M30 DC 2 Wire Wide-voltage/High-voltage inductive proximity switch E4 Return Data download

Product pictures

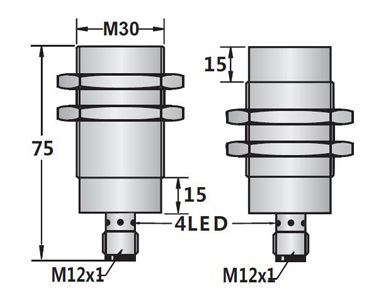

Size chart

Characteristics

Specifications

Diameter	M30*75
Mounting	Non-Shielded
Operating distance	25.0mm
Housing material	stainless steel
Operating voltage	10-60VDC
Ripple Voltage	<10%
Transient Protection	2kV, 1ms,1kohm
Load Current	3-100mA
Leakge Current	<0.8mA
Voltage Drop	<6.0V
Switching Frequency	500HZ
Polarity Reverse Protection	YES
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<2.0%(Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	±10%
Short-circuit Protection	YES
Overload Current	>120mA
Output indicator	LED
Output	DC 2 Wire
Connection type	M12 Connector
Material Active Face	POM

DC2 Wire 10-60V N.O.	HS2-C30-A11-E4
DC2 Wire 10-60V N.C.	HS2-C30-A12-E4
