R40 AC/DC inductive five-way proximity switch (T model) Return Data download

Product pictures

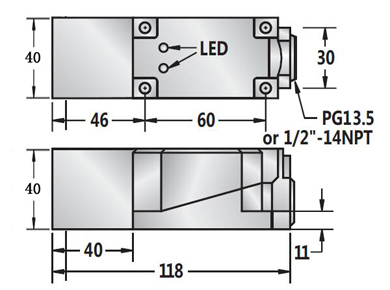

Size chart

Characteristics

Specifications

specification	R40
flush/non-flush	flush/non-flush
sensing distance	30mm
canning material	PBT
working voltage	20-250VAC/VDC
no-load current	＜2.5mA
maximum load current	200mA
leak current	＜2.5mA
circuit peak	2.2A for 20ms
minimum load current	5mA
pressure drop	＜10VAC；8VDC
switching frequency	25HZ AC;40HZ DC
response time	10ms/10ms
switching hysteresis	＜15%（Sr）
repeatability	＜1.0%（Sr）
level of protection	IP67
operating temperature	-25℃ to 70℃
temperature drift	＜10%（Sr）
short-circuit protection	NO

AC/DC 2 > 25 - 250V	HS
N.O	HS-R40-U01-T/HS-R40-U11-T
N.C.	HS-R40-U02-T/HS-R40-U12-T
