Current position：Home - Products - Ordinary inductive sensors - DC three-wire inductive proximity switch

RS40 DC inductive five-way proximity switch (connector) Return Data download

Product pictures

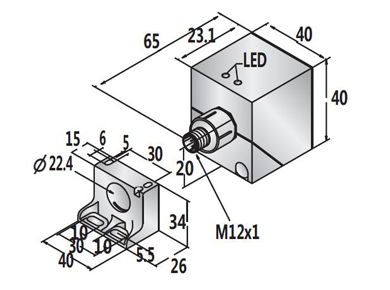

Size chart

Characteristics

Specifications

specification	RS40
flush/non-flush	Flush	Not flush
Sensing Distance	15mm/30mm	30mm/40mm
Shell material	PBT
Operating Voltage	10-30/10-55/10-60VDC
Allowable ripple voltage	＜10%
no-load current	＜10mA
maximum load current	200mA
leak current	＜0.01mA
pressure drop	＜1.5V
switching frequency	180HZ	40HZ
response time	1ms/1ms	1ms/1ms
switching hysteresis	＜15%（Sr）
repeatability	＜1.0（Sr）
level of protection	IP67
operating temperature	-25℃-+75℃
temperature drift	＜10%（Sr）
short-circuit protection	YES
overcurrent	220mA
sensing surface material	PBT	PBT

DC4线10-30V	Flush	Not flush
NPN.N.O	HS-RS40-N03-E4	HS-RS40-N13-E4
PNP.N.O.	HS-RS40-P03-E4	HS-RS40-P13-E4
NPN.N.C.	HS2-RS40-N03-E4	HS2-RS40-N13-E4
PNP.N.C	HS2-RS40-P03-E4	HS2-RS40-P13-E4
