Current position：Home - Products - Ordinary inductive sensors - DC three-wire inductive proximity switch

R40 DC inductive five-way head proximity switch (connector) Return Data download

Product pictures

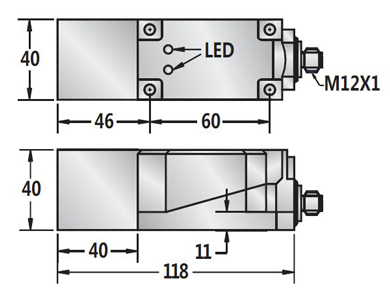

Size chart

Characteristics

Specifications

Guīgé	R40
flush/non-flush	flush/non-flush
Sensing distance	15mm/30mm/30mm/40mm
Shell material	PBT
Operating Voltage	10-30/10-55/10-60VDC
Allowable ripple voltage	＜10%
No-load current	＜10mA
Maximum load current	200mA
Leakage current	＜0.01mA
pressure drop	＜1.5V
On-off level	180HZ/40HZ
Response time	1ms/1ms
switching hysteresis	＜15%（Sr）
Repeat accuracy	＜1.0（Sr）
Protection level	IP67
Operating temperature	-25℃-+75℃
temperature drift	＜10%（Sr）
Short circuit protection	YES
Short circuit protection	220mA
Sensing surface material	PBT

DC4线10-30V	Flush	Not flush
NPN.N.O	HS-R40-N03-E4	HS-R40-N13-E4
PNP.N.O.	HS-R40-P03-E4	HS-R40-P13-E4
NPN.N.C.	HS2-R40-N03-E4	HS2-R40-N13-E4
PNP.N.C	HS2-R40-P03-E4	HS2-R40-P13-E4
