Q8 DC three-wire ultra-short inductive proximity switch (connector P3) Return Data download

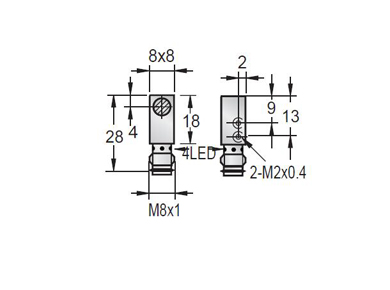

Product pictures Size chart
Characteristics Specifications
 specification
Q8
 flush/non-flush
 flush
 sensing distance
1mm
 housing material
 nickel plated brass
 working voltage
10-30VDC
 allowable ripple voltage
＜10%
 no-load current
＜10mA
maximum load current
200mA
 leak current
＜0.01mA
 pressure drop
＜2V
 switching frequency
1KHZ
 response time
0.2ms/0.2ms
 switching hysteresis
＜15%（Sr）
 repeatability
＜1.0（Sr）
 level of protection
IP67
 operating temperature
-25℃-+70℃
 temperature drift
＜10%（Sr）
 short-circuit protection
YES
 overcurrent
220mA
 sensing surface material
  POM
 DC 3 wire 10-30V NPN NO
HS-QR08-N01-P3
DC 3 wire 10-30V NPN NCHS-QR08-N02-P3
DC 3 wire 10-30V PNP NOHS-QR08-P01-P3
DC 3 wire 10-30V PNP NCHS-QR08-P02-P3
