φ8 DC three-wire ultra-short inductive proximity switch (connector CP3) Return Data download

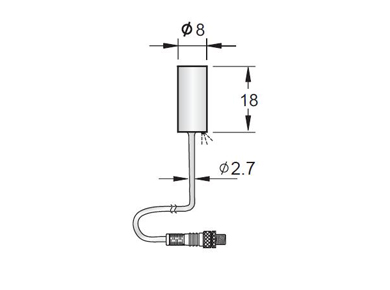

Product pictures Size chart
Characteristics Specifications
 specification
φ8
 flush/non-flush
 flush
 sensing distance
1.5mm
 canning material
 stainless steel
 working voltage
10-30VDC
 allowable ripple voltage
＜10%
 no-load current
＜10mA
maximum load current
200mA
 leak current
＜0.01mA
 pressure drop
＜2V
 switching frequency
1KHZ
 response time
0.2ms/0.2ms
 switching hysteresis
＜15%（Sr）
 repeatability
＜1.0（Sr）
 level of protection
IP67
 operating temperature
-25℃-+70℃
 temperature drift
＜10%（Sr）
 short-circuit protection
YES
 overcurrent
220mA
 sensing surface material
  POM


 DC 3 wire 10-30V NPN NO
HS-SR08-N01-CP3
DC 3 wire 10-30V NPN NCHS-SR08-N02-CP3
DC 3 wire 10-30V PNP NOHS-SR08-P01-CP3
DC 3 wire 10-30V PNP NOHS-SR08-P02-CP3
