φ4 DC three-wire miniaturized inductive proximity switch Return Data download

Product pictures

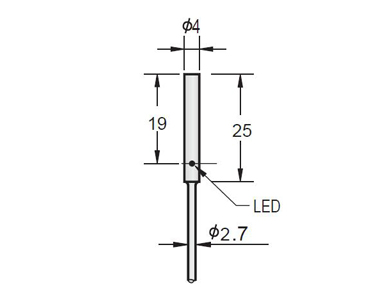

Size chart

Characteristics

Specifications

Diameter	φ4
Flush/Non-flush	Flush
Sense Distance	0.6mm
Housing Material	stainless steel
Operating Voltage	10-30VDC
Ripple Voltage	<10%
No-Load Current	<10mA
Max.Load Current	100mA
Leakge Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	2KHZ
Response Time	0.1ms/0.1ms
Switching Hysteresis	<15% (Sr)
Repeat Accuracy	<1.0 (Sr)
Protection Category	IP67
Operating Temperature	-25℃~70℃
Temperature Drift	<10% (Sr)
Short-circuit Protection	YES
Overload Current	120mA
Material Active Face	POM

DC 3 Wire 10-30V NPN N.O.	HS-S04-N01
DC 3 Wire 10-30V NPN N.C.	HS-S04-N02
DC 3 Wire 10-30V PNP N.O.	HS-S04-P01
DC 3 Wire 10-30V PNP N.C.	HS-S04-P02
