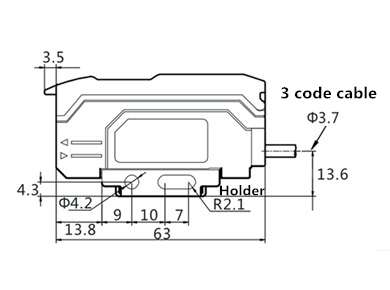

| Diameter | 71.8*30.5*9.8 | | Mounting | Amplifier | | Operating distance | Retro-reflective:0-100mm; Through beam :0-1000mm | | Housing material | Housing:PBT, Operation panel:PC,Lens:PC | | Operating voltage | 12-30VDC | | Consumption current | ≤40mA | | Response Time | 250μs | | Time delay function | Select by switch,delay 40ms | | Sensitivity Adjustment | Rotate 7 turns trimmer potentiometer | | Short-circuit Protection | Reverse electrode protection (power supply), over current protection (output), over voltage (output) | | LED indicator | when the target is within the stable detection area, Green light will be ON; When the output, Red light will be ON. | | Control output | Load voltage: 30V; Load current Max.:200mA; Residual voltage: Max.1V | | Output function | Light-ON/Dark-ON (Switch Mode selection) | | Operating Temperature | -20℃...+55℃(No freeze) | | Ambient Humidity | 35 to 85% RH (No condensation) | | Ambient luminance | Sunlight:30,000Lux, Incandescent light:20,000Lux | | Weight | About 80g | | Connection type | Optical fiber | | Photosource | RED LED | | Output | DC 3 Wire | | Shock resistance | 500m/S2,Use acceleration: 50g, In X,Y, and Z direction for each 3 times. | | Vibration resistance | Frequency:10-55HZ, Compound amplitude:1.5mm, In X,Y,and Z direction for each 2 hours. |
|
| DC 3 Wire 12-30V NPN Light N.O./Dark N.O. | HLM-NS | | DC 3 Wire 12-30V PNP Light N.O./Dark N.O. | HLM-PS |
|
