Current position：Home - Products - Photoelectric sensors - U (groove) photoelectric series
U (groove) Through beam photoelectric sensors HLU Return Data download

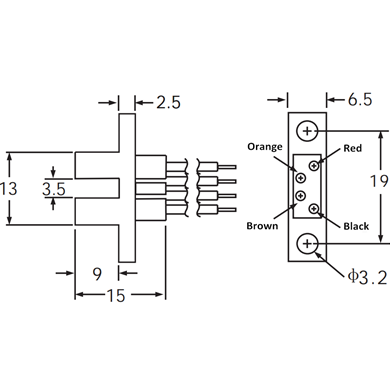

Product pictures Size chart
Characteristics Specifications
Diameter15*25.5*6.5
MountingThrough-beam
Operating distance (Groove Width)3.5mm
Housing materialPBT
Operating voltage30V
Emitting elementInfrared LED
Beam Diameterφ1.5mm
Infrared emission
Power dissipation 100mW
Forward voltage 3V
Forward continuous current 50mA
Monitor
Collector-Emitter voltage  30V
Emitter-Collector voltage  5V
Power dissipation 100mW
Collector currentDC 30 mA
Housing material PC
absolute maximum rating
Operating Temperature-40℃~85℃ deposit:-40℃~85℃
Soldering Temperature240℃
Connection type22 UAS/UL Wire
OutputNPN Transistor


DC4 Wire 30V NPN Transistor OutputHLU-P2
