| Diameter | 15*25.5*6.5 | | Mounting | Through-beam | | Operating distance (Groove Width) | 3.5mm | | Housing material | PBT | | Operating voltage | 5-24VDC | | Emitting element | Infrared LED(880nm) | | Detection of objects | Min.φ1mm | | Dark N.O. Current | 50-100mA | | Light N.O. Current | <10mA | | Dark N.O. Voltage | <0.7V | | Light N.O. Voltage | Similar to the supply voltage | | Output mode | NPN,Max.current=100mA | | Response frequency | >1KHZ | | Short-circuit Protection | NO | | Operating Temperature | -25℃~70℃ | | Backlight luminance | fluorescent light:Max.1000 lx | | Protection Category | IP65 | | Output | DC4Wire | | Connection type | φ2.7 PUR Cable 2m | | Voltage withstand ability | 1000VAC 50/60Hz 1 minute | | Shock resistance | IEC 60947-5-2,Part 7.4.1, Use acceleration: 30g, 11ms, In X,Y, and Z direction for each 6 times. | | Vibration resistance | IEC 60947-5-2 or 10-55HZ, 1.0mm amplitude in x,y and z directions for 30min. | | EMC | IEC 60947-5-2,Parts7.2.6.1.2.3/ RFI>100V/m(in 30-1000mHZ)/ EFT>1KV/ESD>4KV(contact) |
|

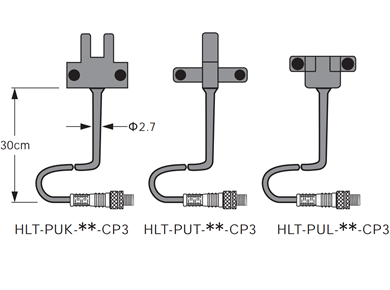

| DC4Wire 5-24V NPN Light N.O. | HLT-PU-NL | | DC4Wire 5-24V NPN Light N.O. | HLT-PU-NL-CP3 |
|
