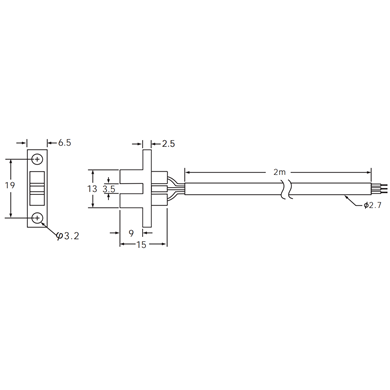

Diameter | 15*25.5*6.5 | Mounting | Through-beam | Operating distance (Groove Width) | 3.5mm | Housing material | PBT | Operating voltage | 5-24VDC | Emitting element | Infrared LED(880nm) | Detection of objects | Min.φ1mm | Dark N.O. Current | 50-100mA | Light N.O. Current | <10mA | Dark N.O. Voltage | Similar to the supply voltage | Light N.O. Voltage | <0.7V | Output mode | NPN,Max.current=100mA | Response frequency | >1KHZ | Short-circuit Protection | NO | Operating Temperature | -25℃~70℃ | Backlight luminance | fluorescent light:Max.1000 lx | Protection Category | IP65 | Output | DC4Wire | Connection type | φ2.7 PUR Cable 2m | Voltage withstand ability | 1000VAC 50/60Hz 1 minute | Shock resistance | IEC 60947-5-2,Part 7.4.1, Use acceleration: 30g, 11ms, In X,Y, and Z direction for each 6 times. | Vibration resistance | IEC 60947-5-2 or 10-55HZ, 1.0mm amplitude in x,y and z directions for 30min. | EMC | IEC 60947-5-2,Parts7.2.6.1.2.3/ RFI>100V/m(in 30-1000mHZ)/ EFT>1KV/ESD>4KV(contact) |
|

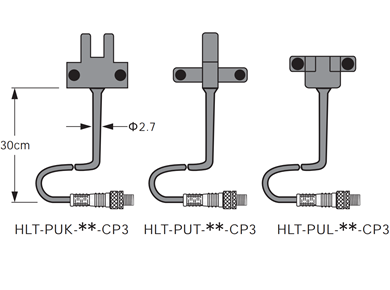

DC4Wire 5-24V NPN Dark N.O. | HLT-PU-ND | DC4Wire 5-24V NPN Dark N.O. | HLT-PU-ND-CP3 |

|
