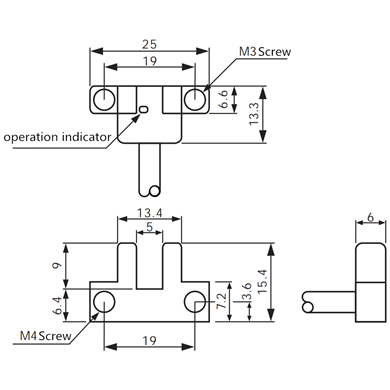

| Diameter | 13.3*25.5*6 |
| Mounting | Through-beam |
| Operating distance | 5.0mm |
| Housing material | PA-6 |
| Operating voltage | 5-24VDC±10% (ripple P-P:Max.10%) |

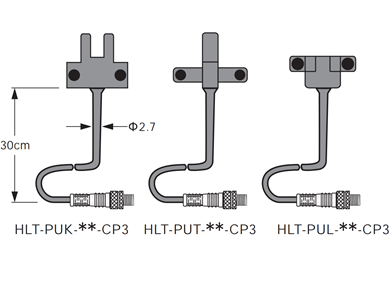

| 0.3meters+M8connector | Add“-cp3” after the original model. Eg:HLU-PUT-ND-CP3 |
| Detection of objects | Min.0.8X1.8mm Opaque object |
| Indicator | RED LED |
| Consumption current | Max.30mA |
| No-Load Current | ≤30mA |
| Control output | NPN or PNP collector open output, Load voltage:Max.30VDC, Load current:Max.100mA, Residual voltage:Max.1.2.V |
| operating mode | By model selection Light N.O./Dark N.O. |
| Response Time | Incoming light: Max.20µs Hood light: Max.100µs |
| Response frequency | 2KHZ |
| Operating Temperature | -25℃~55℃ deposit:-25℃~85℃ |
| Ambient Humidity | 35~85%RH(deposit:35~85%RH) |
| Backlight luminance | fluorescent light:Max.1000 lx |
| Protection Category | IP50(IEC) |
| Insulation resistance | Min.20M Ω(Based on 250VDC) |
| Output | DC4Wire |
| Connection type | φ2.7 PUR Cable 2m |
| Photosource | RED LED |
| Collect light parts | Photoelectric induction triode |
| Anti-interference | ±240V directional interference from noise generator (pulse width:1µs) |
| Voltage withstand ability | 1000VAC 50/60Hz 1 minute |
| Shock resistance | 500m/S2,Use acceleration: 50g, In X,Y, and Z direction for each 3 times. |
| Vibration resistance | Frequency:10-55HZ, Compound amplitude:1.5mm, In X,Y,and Z direction for each 2 hours. |
