U (groove) Through beam photoelectric sensors PUK Return Data download

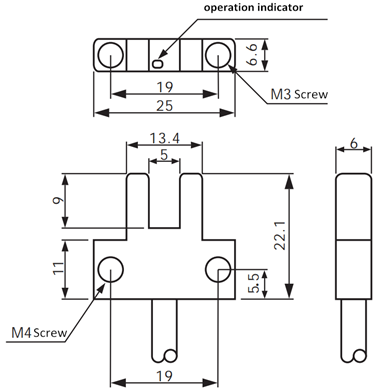

Product pictures Size chart
Characteristics Specifications
Diameter22*25*6
MountingThrough-beam
Operating distance 5.0mm
Housing materialPA-6
Operating voltage

5-24VDC±10%

(ripple P-P:Max.10%)

0.3meters+M8connector

Add“-cp3” after the original model.

Eg:HLU-PUT-ND-CP3

Detection of objectsMin.0.8X1.8mm Opaque object
Indicator RED LED
Consumption currentMax.30mA
No-Load Current≤30mA
Control output

NPN or PNP collector open output,

Load voltage:Max.30VDC,

Load current:Max.100mA,

Residual voltage:Max.1.2.V

operating modeBy model selection Light N.O./Dark N.O.
Response Time

Incoming light: Max.20µs

Hood light: Max.100µs

Response frequency2KHZ
Operating Temperature-25℃~55℃ deposit:-25℃~85℃
Ambient Humidity35~85%RH(deposit:35~85%RH)
Backlight luminancefluorescent light:Max.1000 lx
Protection CategoryIP50(IEC)
Insulation resistanceMin.20M Ω(Based on 250VDC)
OutputDC4Wire
Connection typeφ2.7 PUR Cable 2m
PhotosourceRED LED
Collect light partsPhotoelectric induction triode
Anti-interference

±240V directional interference

from noise generator

(pulse width:1µs)

Voltage withstand ability1000VAC 50/60Hz 1 minute
Shock resistance

500m/S2,Use acceleration: 50g,

In X,Y, and Z direction

for each 3 times.

Vibration resistance

Frequency:10-55HZ,

Compound amplitude:1.5mm,

In X,Y,and Z direction for each 2 hours.



DC4Wire 10-30V NPN Dark N.O.HLT-PUK-ND
DC4Wire 10-30V NPN Light N.O.HLT-PUK-NL
DC4Wire 10-30V PNP Dark N.O.HLT-PUK-PD
DC4Wire 10-30V PNP Light N.O.HLT-PUK-PL
DC4Wire 10-30V NPN Dark N.O.HLT-PUK-ND-CP3
DC4Wire 10-30V NPN Light N.O.HLT-PUK-NL-CP3
DC4Wire 10-30V PNP Dark N.O.HLT-PUK-PD-CP3
DC4Wire 10-30V PNP Light N.O.HLT-PUK-PL-CP3
