P5050 DC 5 Wire Diffuse EXT-distance reflection photoelectric sensors E4 Return Data download

Product pictures

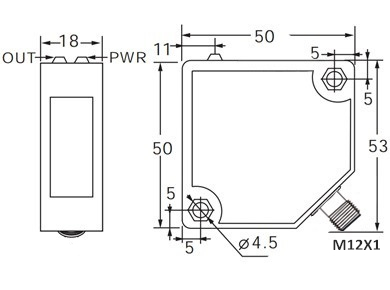

Size chart

Characteristics

Specifications

Diameter	P505018
Mounting	Diffuse
Operating distance	30cm~2m
Housing material	PBT
Operating voltage	10-30VDC
Residual Ripple	≤10%
Tolerance	±10%Sn
Hysteresis	10%
Emitting element	Infrared LED(880nm)
Max.Output Current	200mA
No-Load Current	40mA
Voltage Drop	≤2.0V(I=100mA)
Yellow LED	output indicator
Green LED	power and status indicator
Sensitivity Adjustment	Rotate 1 turn trimmer potentiometer
Switching Frequency	200Hz
Response Time	5.0ms
On-delay operation	100ms
Short-circuit Protection	YES
Reverse Polarity Protection	YES
Operating Temperature	-10℃~60℃
Backlight luminance	>10.000Lux
Protection Category	IP65
Output	DC 5 Wire
Connection type	M12 Connector
Material Active Face	PC
Standard test object	20x20cm white paper

DC5Wire 10-30V NPN/PNP Light/Dark N.O.

EMD3-P5050-DS-E4
