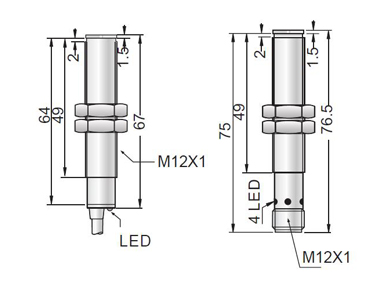

| Diameter | M12*76.5 | | Mounting | Retro-reflective(with polarizing filter) | | Operating distance | 500.0mm | | Housing material | Nickel plated brass | | Operating voltage | 10-30VDC | | Ripple Voltage | ≤10% | | Tolerance | ±10%Sn | | Hysteresis | 10% | | Emitting element | Infrared LED(880nm) | | Max.Output Current | 150mA | | No-Load Current | ≤30mA | | Voltage Drop | ≤2.5V | | Sensitivity Adjustment | - | | Response Time | 1.0ms | | Short-circuit Protection | YES | | Reverse Polarity Protection | YES | | Operating Temperature | -25℃~55℃ | | Ambient Humidity | 35~85%RH | | Backlight luminance | >10.000Lux | | Protection Category | IP67 | | Insulation resistance | >20mA(500VDC) | | Output | DC 4 Wire | | Connection type | M12 Connector | | Material Active Face | PC | | Standard test object | - | | Voltage withstand ability | IEC 60947-5-2 or 500VDC for 1min. | | Shock resistance | IEC 60947-5-2,Part 7.4.1 or 30g 11ms in x,y and z directions for each six time. | | Vibration resistance | IEC 60947-5-2,Part 7.4.2 or 10-55HZ,1.0mm amplitude in x,y and z directions for 30min. | | EMC | IEC 60947-5-2,Parts7.2.6.1.2.3/ RFI>100V/m(in 30-1000mHZ)/ EFT>1KV/ESD>4KV(contact) |
|
| DC4Wire 10-30V NPN Light/Dark N.O. | HLR-C12-NS-E4 | | DC4Wire 10-30V PNP Light/Dark N.O. | HLR-C12-PS-E4 |
|
